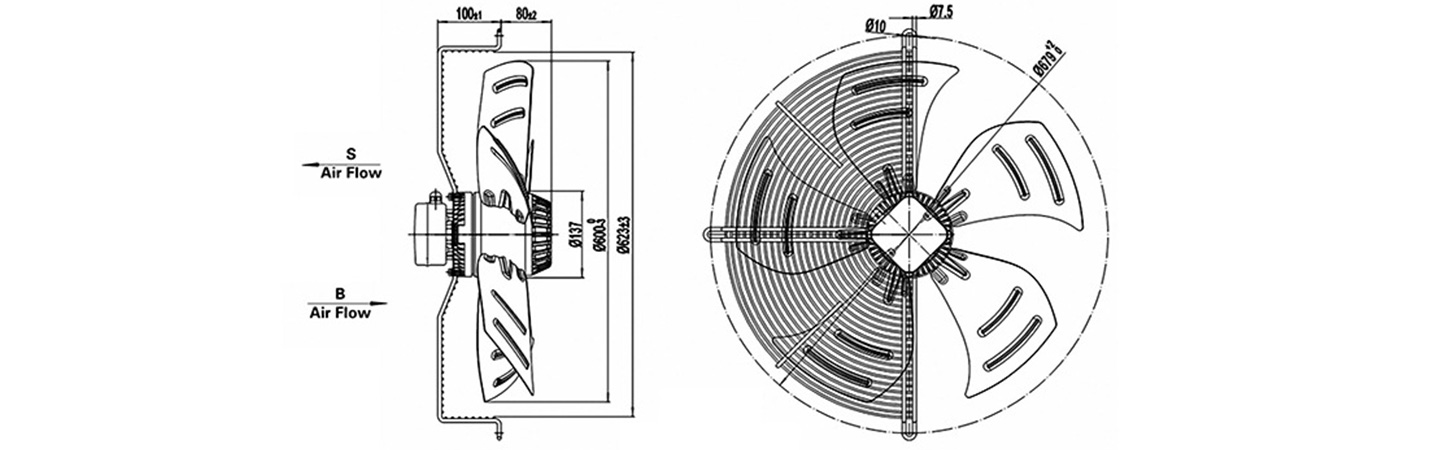

YWF600 External rotor fan

Size: Φ600mm
Motor wires: 100% pure copper motor wires
Bearing: Ball
Technical characteristics

Item code: YWF600 External rotor fan

Housing: Iron, Painted Black

Impeller: Steel, Painted Black

Lead Wire: UL 1007 AWG#22

Termination: Lead wire, no connector

Operating Temperature: -30℃ to +60℃ for Ball Type


Performance Parameter
Model Rated Voltage Frequency Rated Current Imput power W Rated Speed Air Flow Poles Capacitance Noise Level
V  AC Hz Amp RPM M3/hr μF/V dBA
YWF600-2 200-240 50/60 2.5/3.3 550/725 1350/1550 9600/10200 4 16 73/74
YWF600-3 380-420 50/60 1.5/1.5 550/725 1350/1550 9600/10200 4 / 73/74
YWF600-6 200-240 50/60 2.4/2.9 500/640 910/1080 9500/9900 6 12 62/66
YWF600-7 380-420 50/60 1.5/1.5 500/650 920/1070 9500/9900 6 / 62/66
