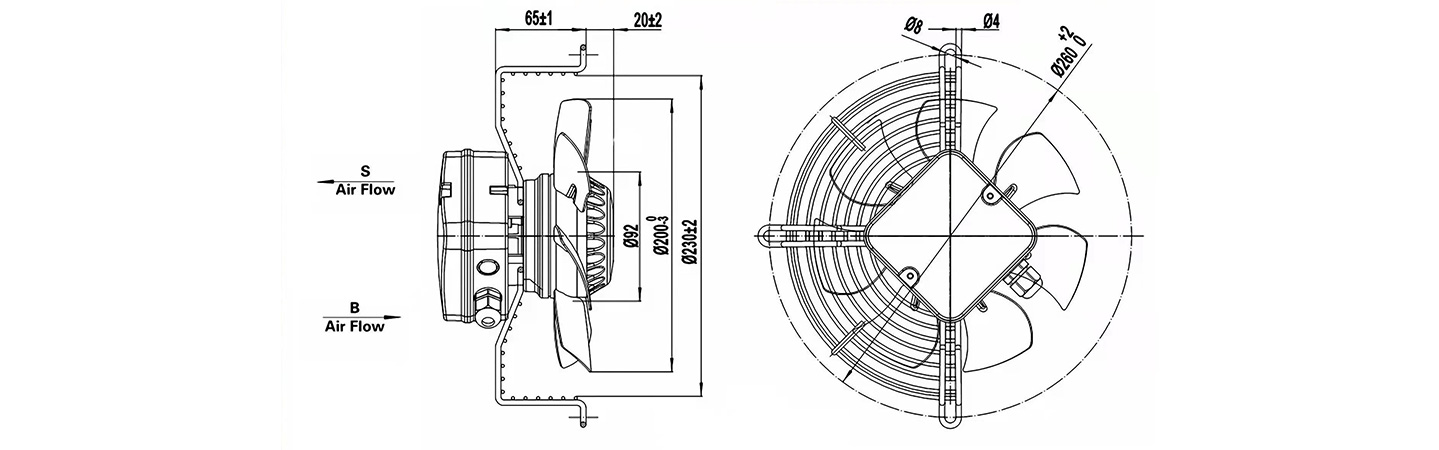

YWF200 External rotor fan

Size: Φ200mm
Motor wires: 100% pure copper motor wires
Bearing: Ball
Weight: 2000g
Technical characteristics

Item code: YWF200 External rotor fan

Housing: Iron, Painted Black

Impeller: Steel, Painted Black

Lead Wire: UL 1007 AWG#22

Termination: Lead wire, no connector

Operating Temperature: -30℃ to +60℃ for Ball Type


Performance Parameter
Model Rated Voltage Frequency Rated Current Imput power W Rated Speed Air Flow Phase No. Capacitance Noise Level
V  AC Hz Amp RPM M3/hr μF/V dBA
YWF200-5 100-125 50/60 0.66 65/80 2300/2600 880/980 1 8 65/68
YWF200-6 200-240 50/60 0.3 65/80 2300/2600 880/980 1 2 65/68
YWF200-7 380-420 50/60 0.24 65/80 2300/2600 880/980 3 / 65/68
YWF200-8 380-420 50/60 0.35 65/80 2300/2600 880/980 1 1.2 65/68
