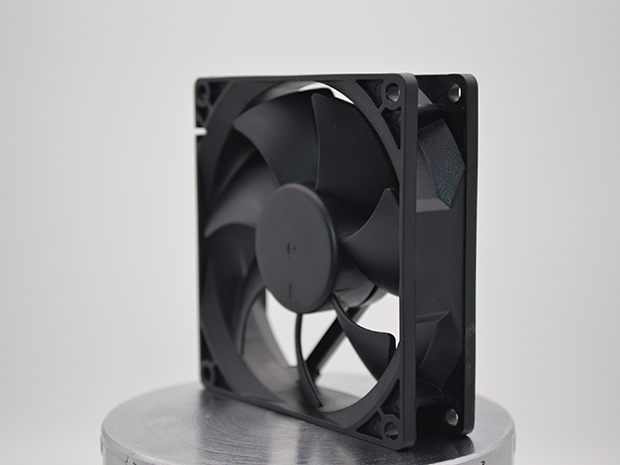

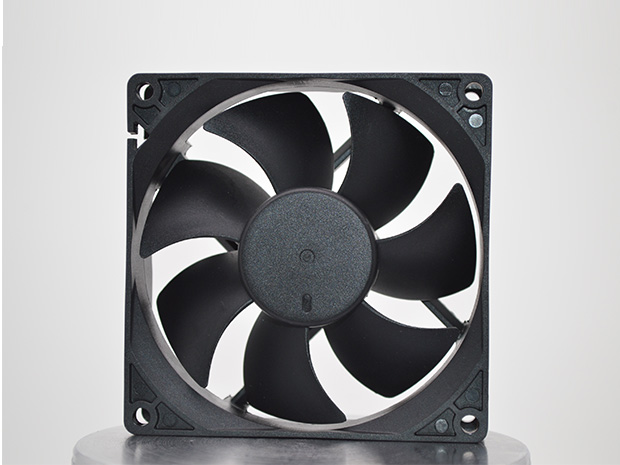

EC 9225

Size: 92*92*25mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 85g
Safety: Impedance Protected
Technical characteristics

Item code: EC 9225

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type

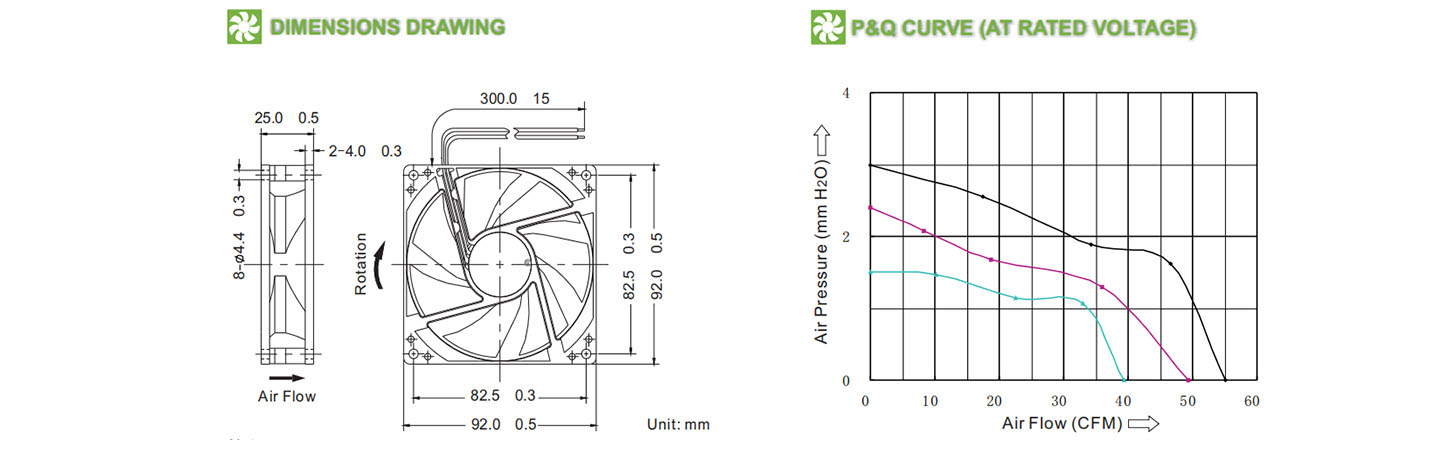

Performance Parameter
Model Bearing System Rated Voltage Freq. Operation Voltage Rated Current Rated Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz V AC Amp Watt RPM CFM mmH2O dBA

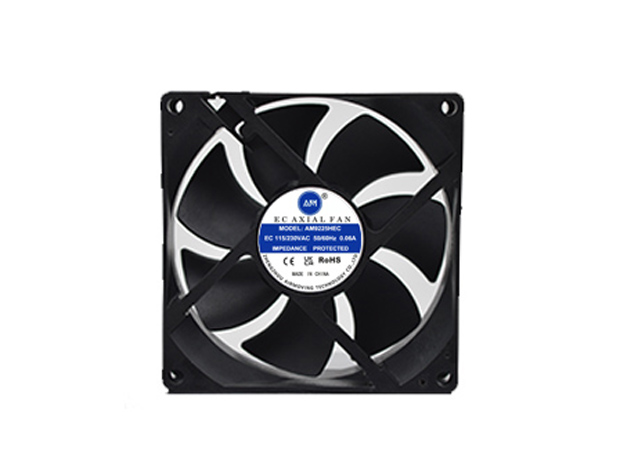

AM9225HEC 115/230 50/60 98-264 0.06 6 2800 55.2 3.0 33
AM9225MEC 0.05 5 2500 49.3 2.4 30
AM9225LEC 0.03 3 2000 39.4 1.5 25
