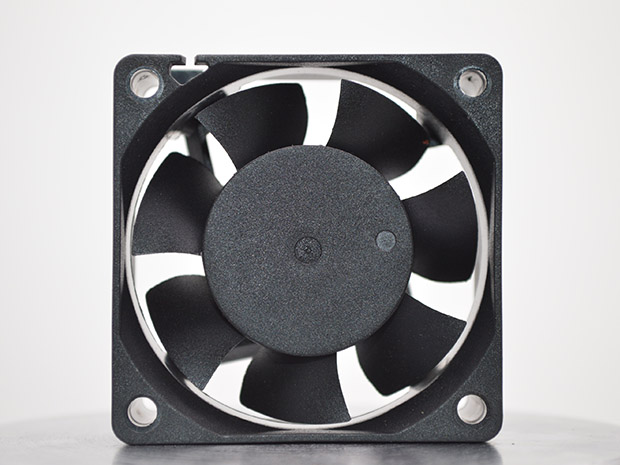

EC 6025

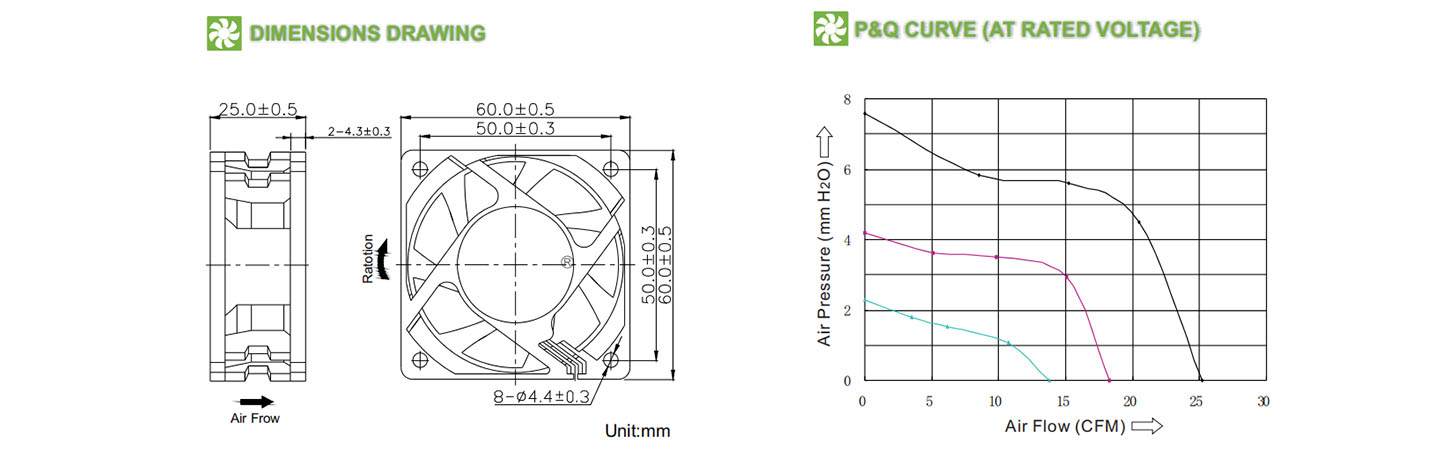

Size: 60*60*25mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 62g
Safety: Impedance Protected
Technical characteristics

Item code: EC 6025

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Freq. Operation Voltage Rated Current Rated Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz V AC Amp Watt RPM CFM mmH2O dBA

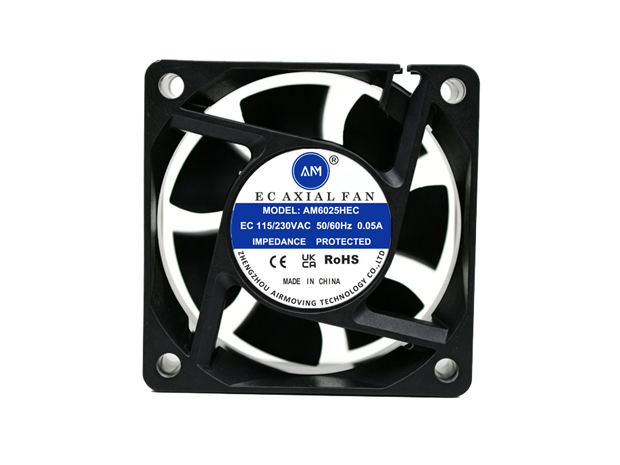

AM6025HEC 115/230 50/60 98-264 0.05 4 6000 25.2 6.5 37
AM6025MEC 0.04 3 4000 18.3 4.2 30
AM6025LEC 0.03 2 3000 13.8 2.3 24
