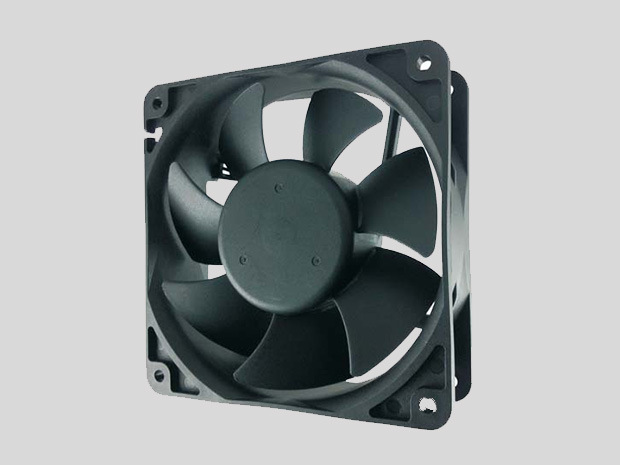

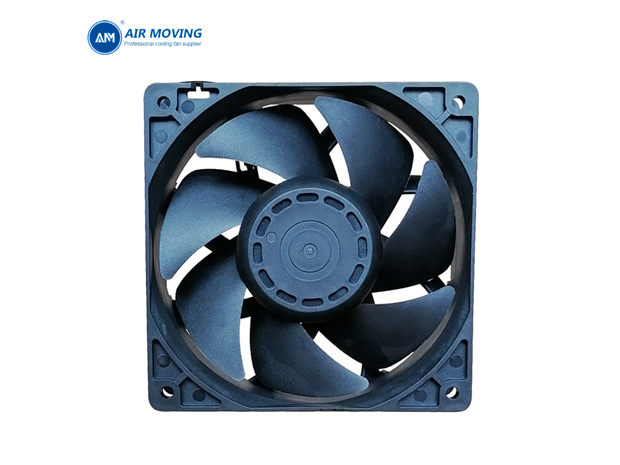

EC 12038 plastic

Size: 120*120*38mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 260g
Safety: Impedance Protected
Technical characteristics

Item code: EC 12038 plastic

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type

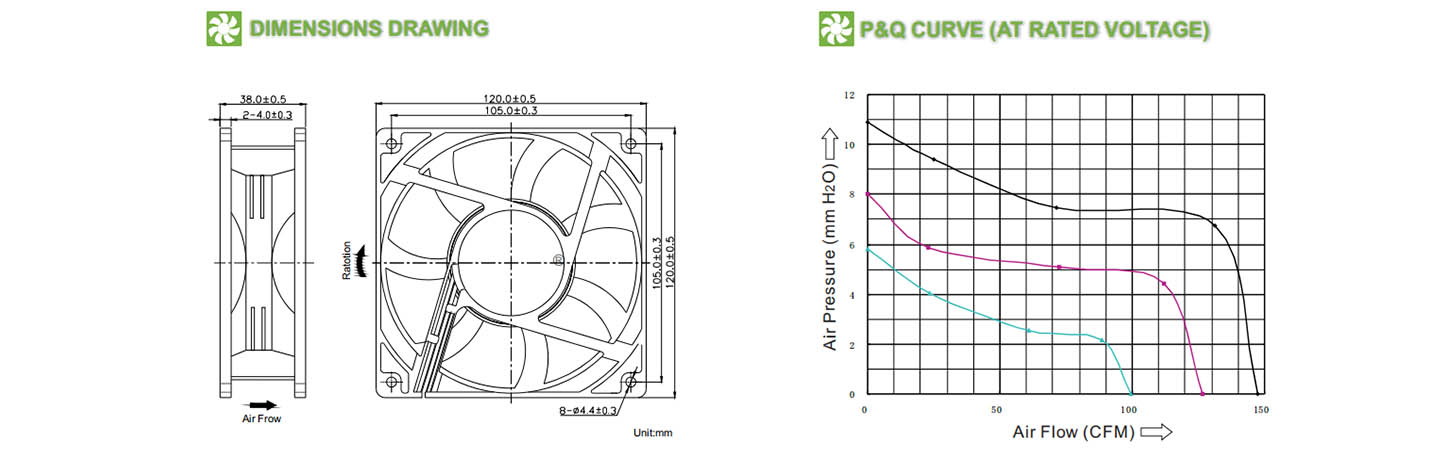

Performance Parameter
Model Bearing System Rated Voltage Freq. Operation Voltage Rated Current Rated Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz V AC Amp Watt RPM CFM mmH2O dBA
AM12038DEC 115/230 50/60 98-264 0.13 18 4000 220.2 14.2 50
AM12038HEC 0.10 12 3500 147.6 10.9 47
AM12038MEC 0.08 8 3000 126.5 8.0 44
AM12038LEC 0.06 6 2500 99.7 5.8 40
