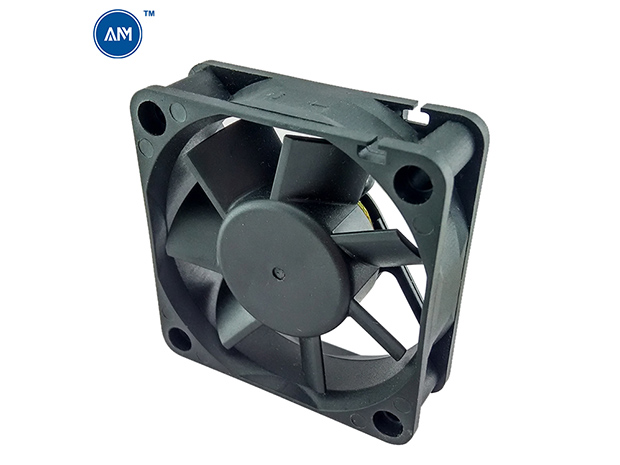

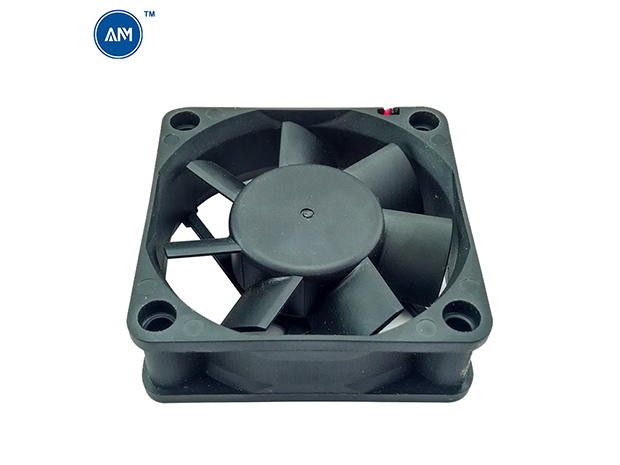

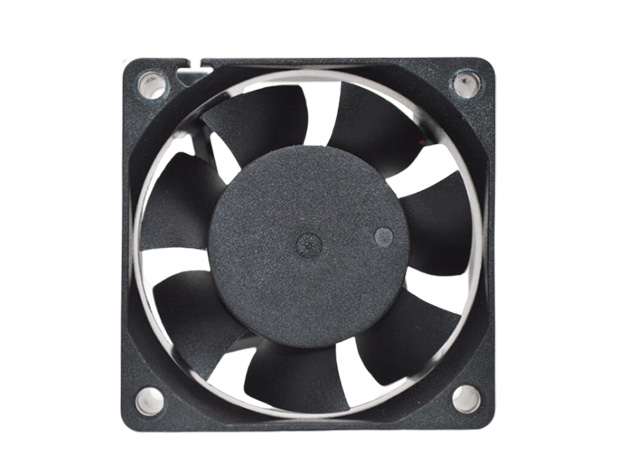

DC6025

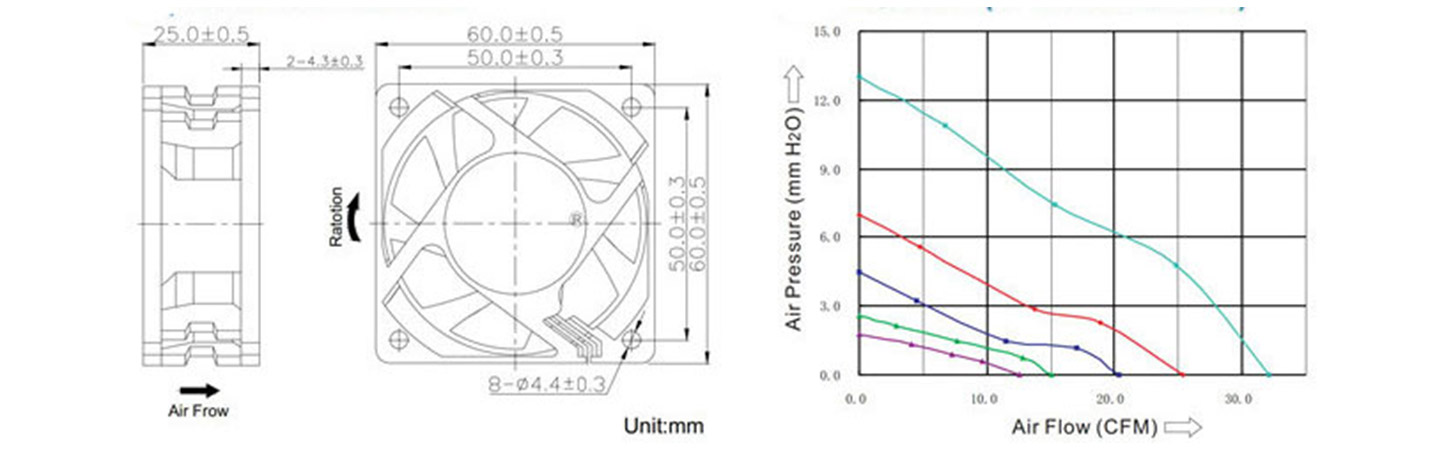

Size: 60*60*25mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 60g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Auto restart
3.Waterproof Level
Technical characteristics

Item code: DC6025

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Optional wire: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
                                        -20℃ to +80℃,35%-85%RH for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Power Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC W A RPM CFM MmH2O dBA
AM6025H5 5.0 4.5-5.5 1.50 0.30 4000 20.3 4.5 30
AM6025M5 1.25 0.25 3000 15.1 2.6 24
AM6025L5 1.00 0.20 2000 12.5 1.8 22
AM6025U12 12.0 6.0-13.8 5.40 0.45 6000 32.1 13.0 48
AM6025H12 3.00 0.25 5000 25.4 7.0 36
AM6025M12 2.16 0.18 4000 20.3 4.5 30
AM6025L12 1.20 0.10 3000 15.1 2.6 24
AM6025U24 24.0 12.0-27.6 6.00 0.25 6000 32.1 13.0 48
AM6025H24 2.88 0.12 5000 25.4 7.0 36
AM6025M24 2.40 0.10 4000 20.3 4.5 30
AM6025L24 1.92 0.08 3000 15.1 2.6 24
AM6025U48 48.0 24.0-55.2 8.64 0.18 6000 32.1 13.0 48
AM6025H48 4.80 0.10 5000 25.4 7.0 36
AM6025M48 3.84 0.08 4000 20.3 4.5 30
AM6025L48 2.88 0.06 3000 15.1 2.6 24
