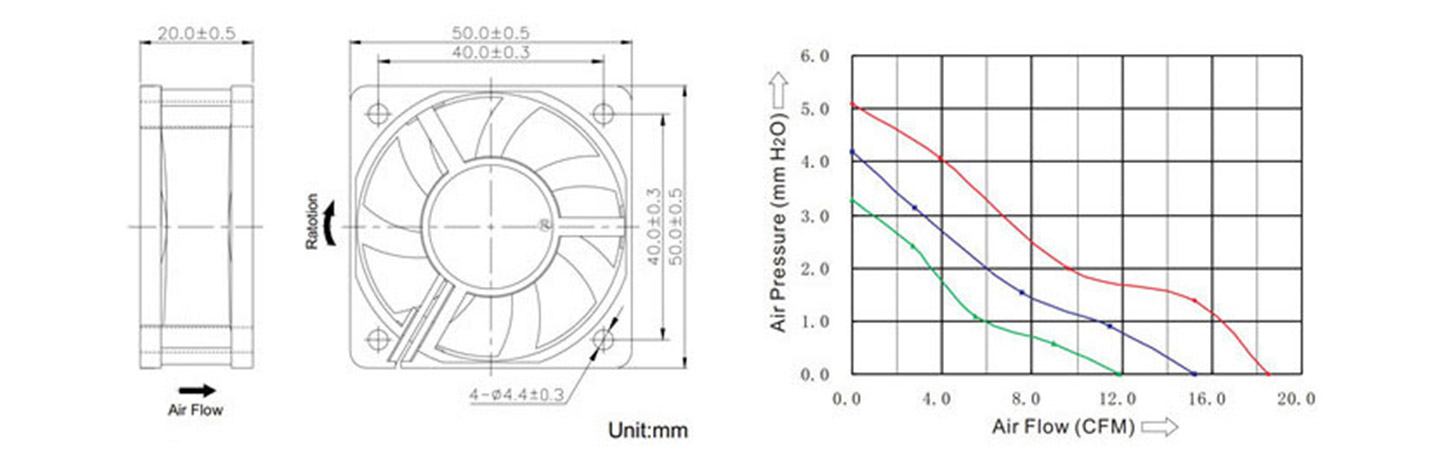

| Size: | 50*50*20mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 27g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC5020
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM5020H5 | 5.0 | 4.5-5.5 | 1.60 | 0.32 | 5500 | 18.5 | 5.1 | 35 |
| AM5020M5 | 1.30 | 0.26 | 4500 | 15.2 | 4.2 | 28 | ||
| AM5020L5 | 0.90 | 0.18 | 3500 | 11.9 | 3.3 | 22 | ||
| AM5020H12 | 12.0 | 6.0-13.8 | 2.40 | 0.20 | 5500 | 18.5 | 5.1 | 35 |
| AM5020M12 | 1.80 | 0.15 | 4500 | 15.2 | 4.2 | 28 | ||
| AM5020L12 | 1.08 | 0.09 | 3500 | 11.9 | 3.3 | 22 | ||
| AM5020H24 | 24.0 | 12.0-27.6 | 2.88 | 0.12 | 5500 | 18.5 | 5.1 | 35 |
| AM5020M24 | 1.92 | 0.08 | 4500 | 15.2 | 4.2 | 28 | ||
| AM5020L24 | 1.44 | 0.06 | 3500 | 11.9 | 3.3 | 22 |
