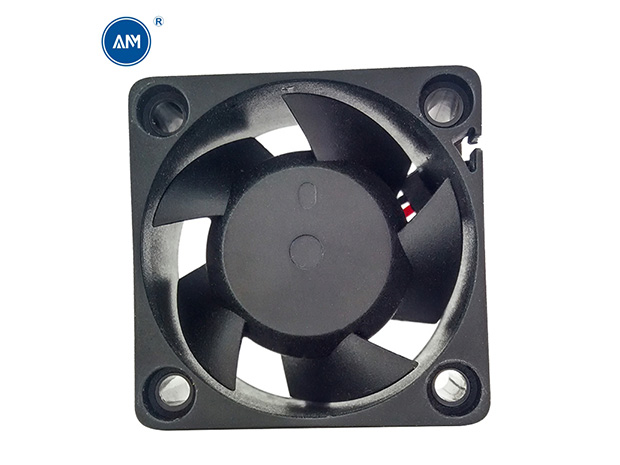

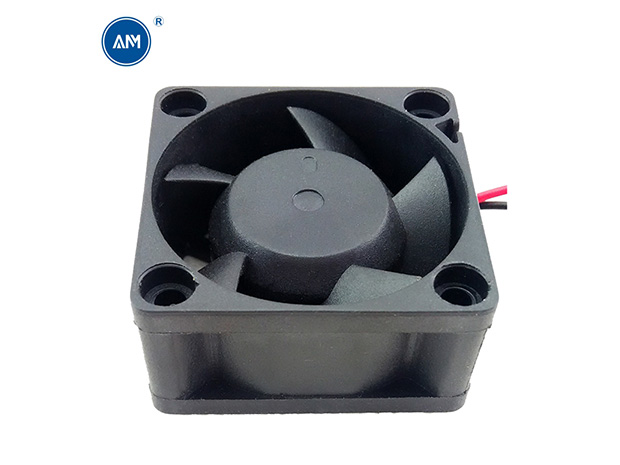

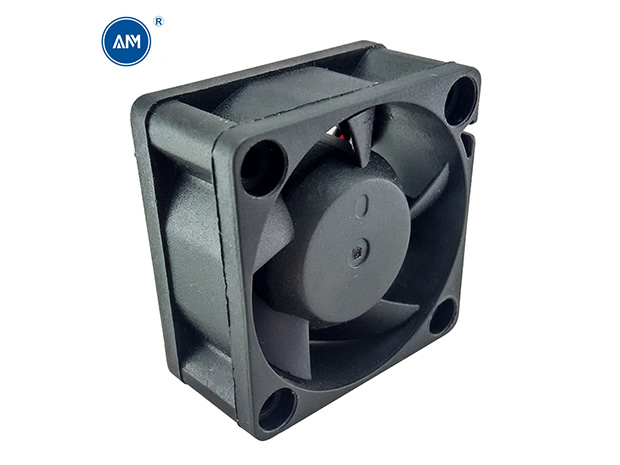

DC4020

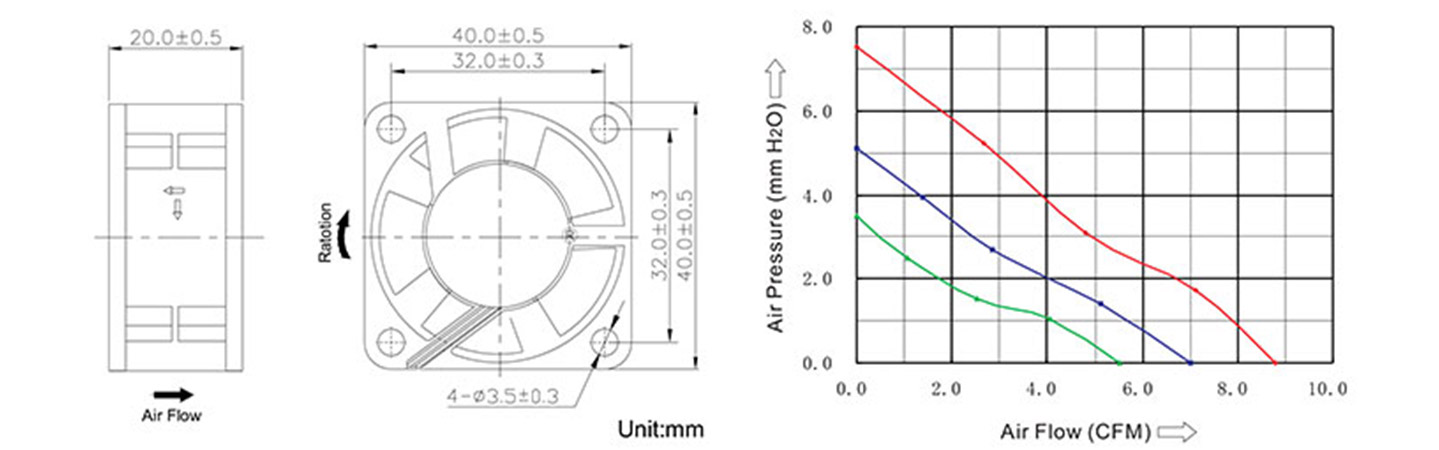

Size: 40*40*20mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 26g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Auto restart
3.Waterproof Level
Technical characteristics

Item code: DC4020

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Optional wire: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
                                        -20℃ to +80℃,35%-85%RH for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Power Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC W A RPM CFM MmH2O dBA
AM4020H5 5.0 4.5-5.5 1.50 0.30 8000 8.8 7.5 33
AM4020M5 1.20 0.24 6500 7.0 5.1 27
AM4020L5 1.00 0.20 5100 5.5 3.5 23
AM4020H12 12.0 6.0-13.8 1.80 0.15 8000 8.8 7.5 33
AM4020M12 1.44 0.12 6500 7.0 5.1 27
AM4020L12 0.84 0.07 5100 5.5 3.5 23
AM4020H24 24.0 12.0-27.6 2.40 0.10 8000 8.8 7.5 33
AM4020M24 1.68 0.07 6500 7.0 5.1 27
AM4020L24 1.20 0.05 5100 5.5 3.5 23
