DC4007

Size: 40*40*07mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 10g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Polarity Protection.
3.Waterproof Level
Technical characteristics

Item code: DC4007

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Optional wire: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
                                        -20℃ to +80℃,35%-85%RH for Ball Type

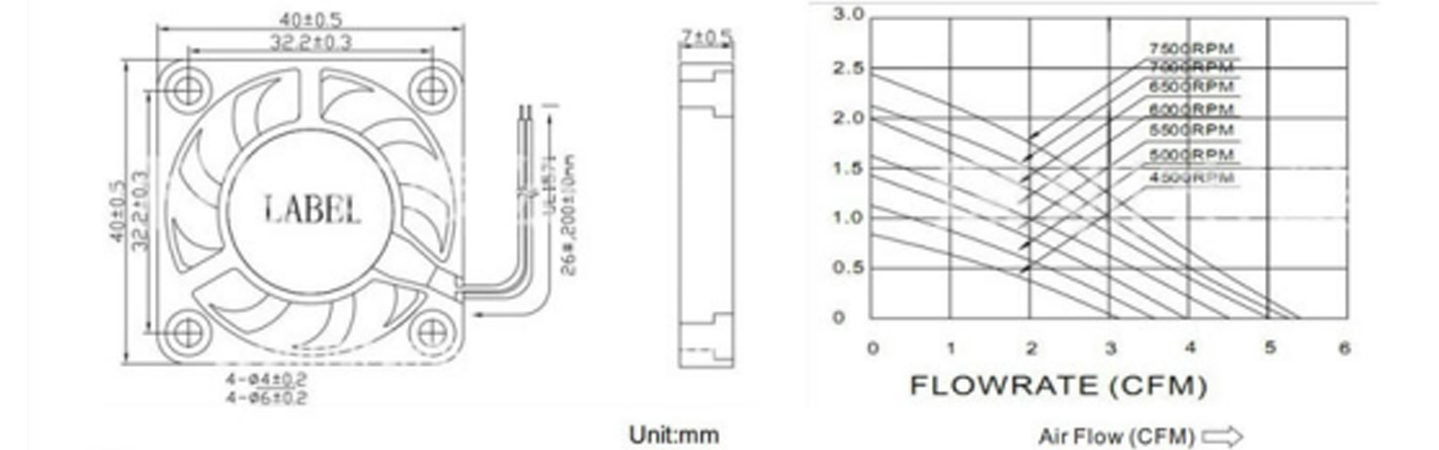

Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC A RPM CFM MmH2O dBA
AM4007L5 5.0 3.5-5.5 0.12 4500 3.14 0.85 23.5
AM4007LM5 0.144 5000 3.67 1.17 24.5
AM4007ML5 0.168 5500 3.96 1.4 25.6
AM4007M5 0.192 6000 4.6 1.65 27.5
AM4007LH5 0.20 6500 5.06 2.02 29.3
AM4007H5 0.216 7000 5.31 2.17 30.4
AM4007HH5 0.24 7500 5.37 2.4 31.5
AM4007L12 12.0 6.0-13.8 0.05 4500 3.14 0.85 23.5
AM4007ML12 0.07 5500 3.96 1.4 25.6
AM4007LH12 0.085 6500 5.06 2.02 29.3
AM4007HH12 0.10 7500 5.37 2.4 31.5
