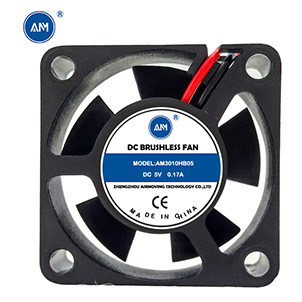

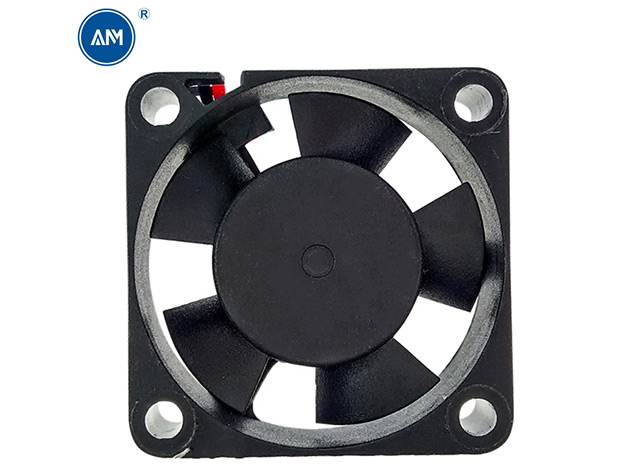

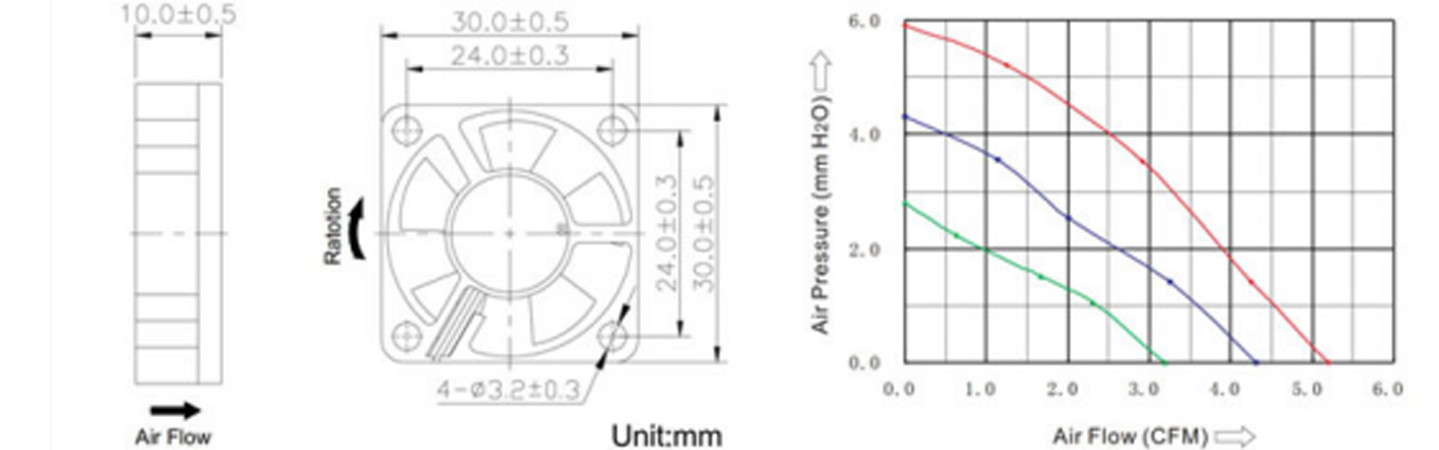

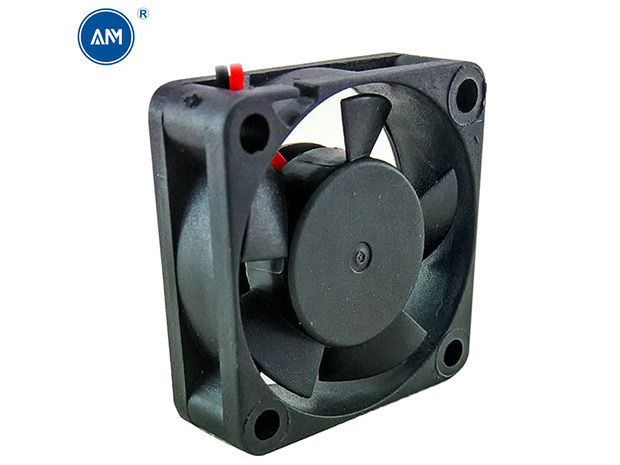

Size: | 30*30*10mm |
Motor: | DC brushless fan motor |
Bearing: | Ball, Sleeve or Hydraulic |
Weight: | 9g |
No. of Pole: | 4 Poles |
Rotating Direction: | Counter-Clockwise |
Optional Function: | 1.Lock Protection |
2.Polarity protection. | |
3.Waterproof Level |
Item code: DC3010
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
-20℃ to +80℃,35%-85%RH for Ball Type
Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
AM3010H5 | 5.0 | 4.5-5.5 | 1.00 | 0.20 | 11000 | 5.2 | 5.91 | 32 |
AM3010M5 | 0.75 | 0.15 | 9000 | 4.3 | 4.32 | 27 | ||
AM3010L5 | 0.60 | 0.12 | 7000 | 3.2 | 2.83 | 23 | ||

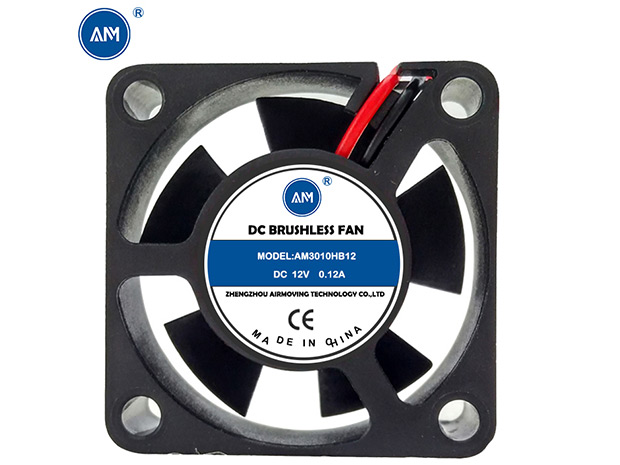

AM3010H12 | 12.0 | 6.0-13.8 | 1.20 | 0.10 | 11000 | 5.2 | 5.91 | 32 |
AM3010M12 | 0.96 | 0.08 | 9000 | 4.3 | 4.32 | 27 | ||
AM3010L12 | 0.72 | 0.06 | 7000 | 3.2 | 2.83 | 23 |
