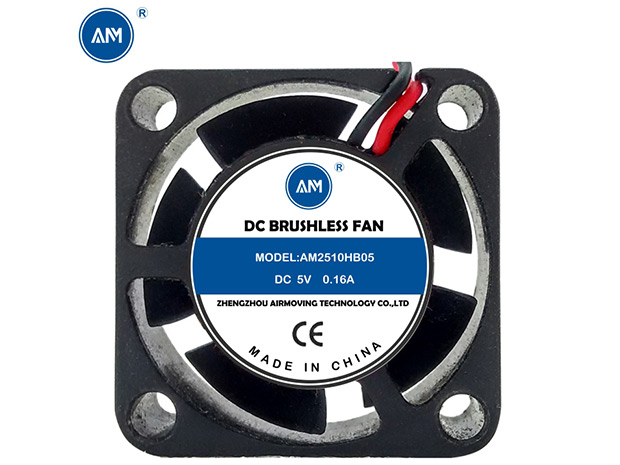

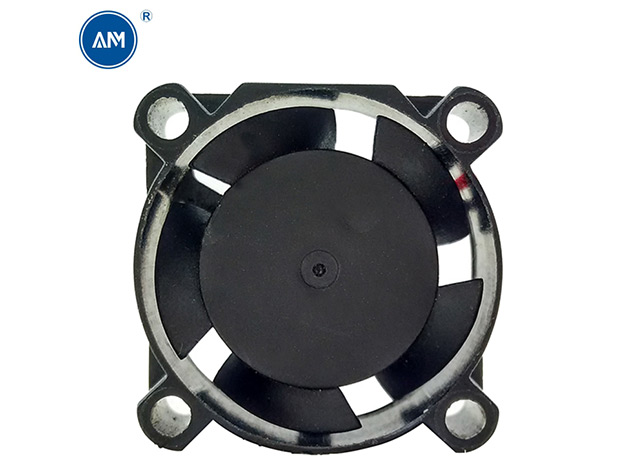

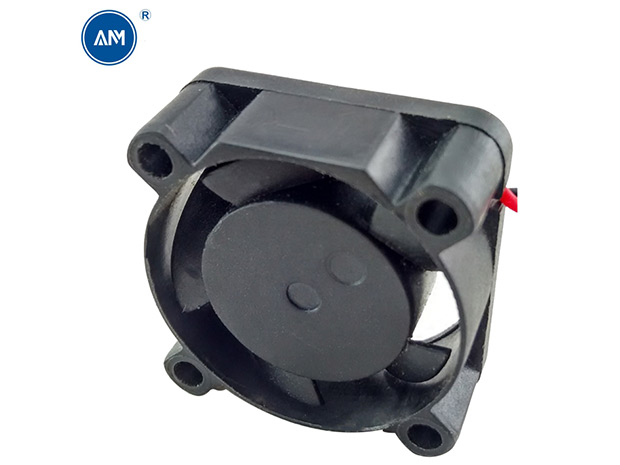

DC2510

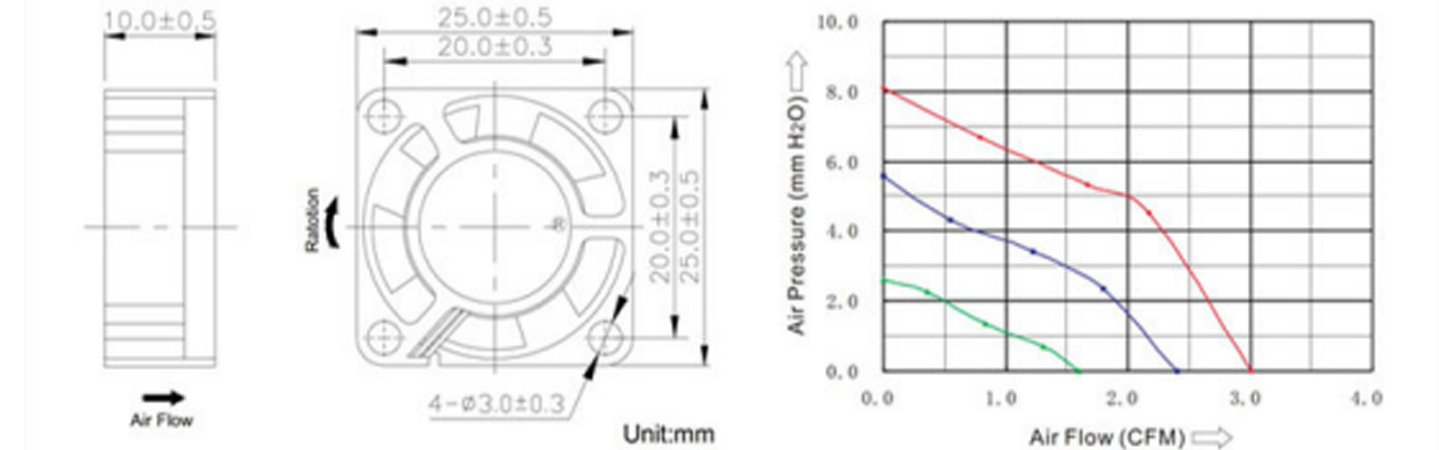

Size: 25*25*10mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 7g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Polarity protection.
3.Waterproof Level
Technical characteristics

Item code: DC2510

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black
                   Optional wire: “Sensor” Yellow, “PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
                                        -20℃ to +80℃,35%-85%RH for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Power Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC W A RPM CFM MmH2O dBA
AM2510H5 5.0 4.5-5.5 1.00 0.20 13000 3.0 8.1 27
AM2510M5 0.80 0.16 10000 2.3 4.6 23
AM2510L5 0.70 0.14 7000 1.4 2.5 20
AM2510H12 12.0 6.0-13.8 1.44 0.12 13000 3.0 8.1 27
AM2510M12 1.20 0.10 10000 2.3 4.6 23

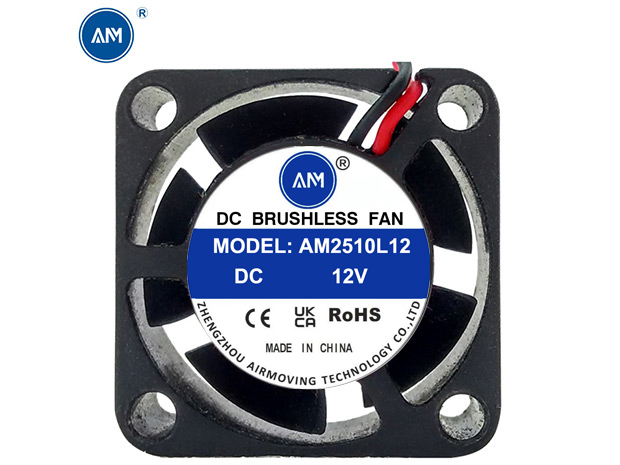

AM2510L12 0.96 0.08 7000 1.4 2.5 20
