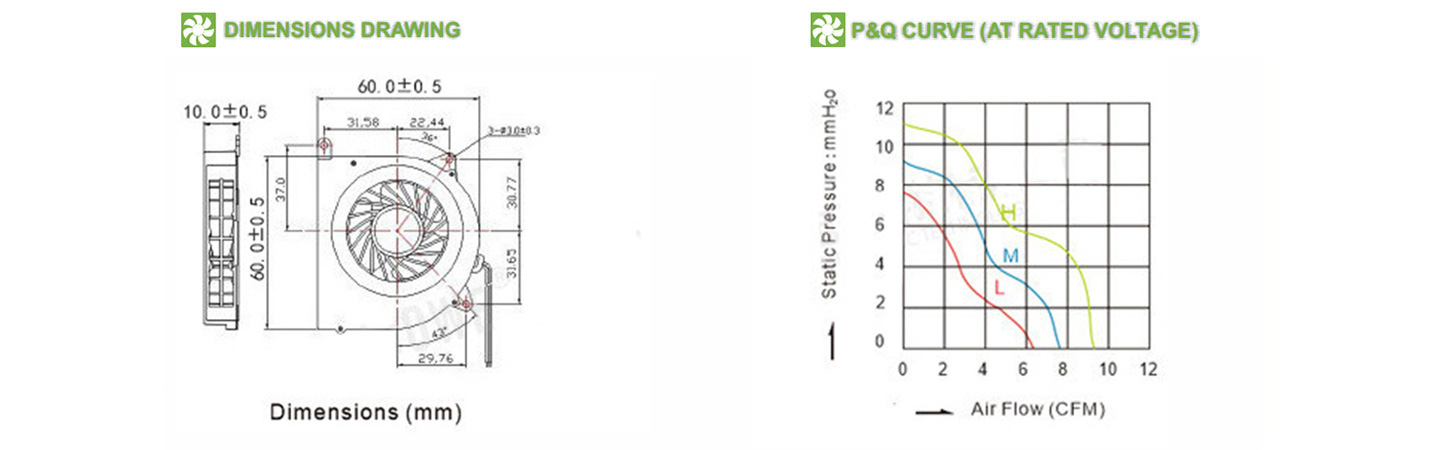

| Size: | 60*60*10mm |
| Motor: | DC brushless fan motor |
| Weight: | 40g |

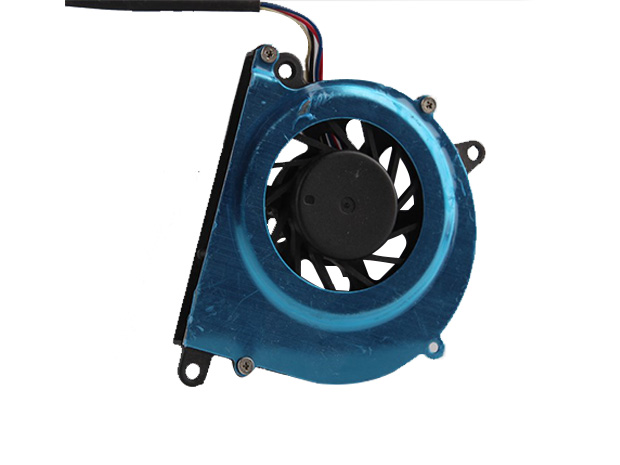

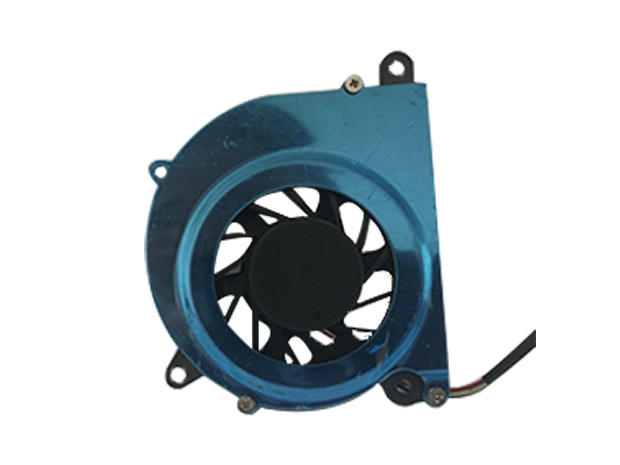

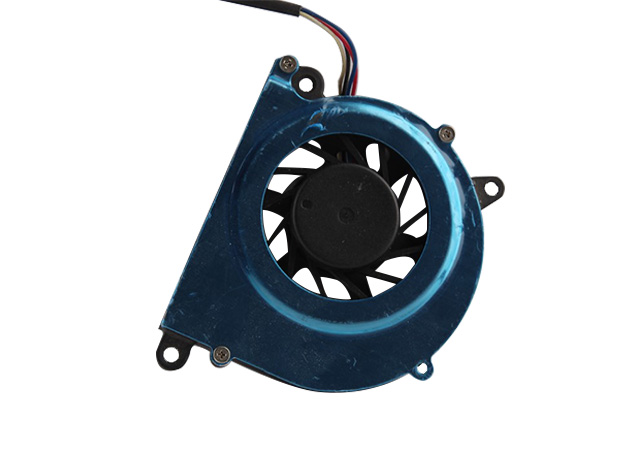

Item code: DC blower fan 6010
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Expectancy Life: 50000 hours at 25℃-Ball
30000 hours at 25℃-Sleeve
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-40℃ to +75℃ for Ball Type

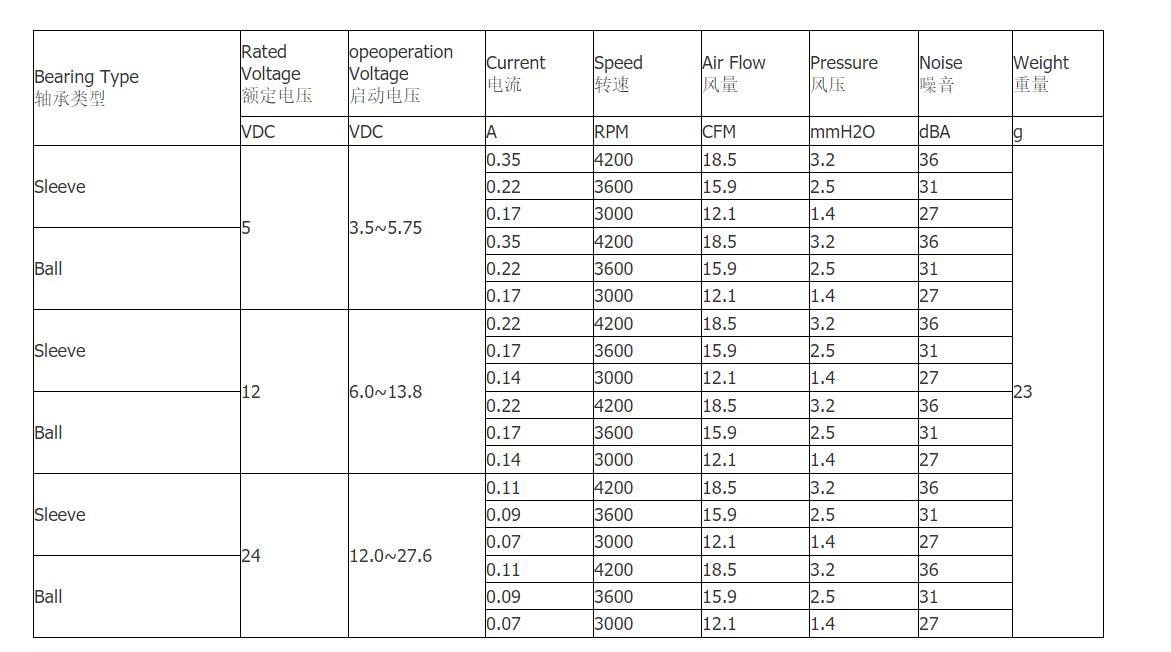

| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | A | RPM | CFM | MmH2O | dBA | |
| AM6010H5B(S) | 5.0 | 3.0-5.5 | 0.35 | 4200 | 1.85 | 3.2 | 36 |
| AM6010M5B(S) | 0.22 | 3600 | 1.59 | 2.5 | 31 | ||
| AM6010L5B(S) | 0.17 | 3000 | 1.21 | 1.4 | 27 | ||
| AM6010H12B(S) | 12.0 | 6.0-13.8 | 0.22 | 4200 | 1.85 | 3.2 | 36 |
| AM6010M12B(S) | 0.17 | 3600 | 1.59 | 2.5 | 31 | ||
| AM6010L12(S) | 0.14 | 3000 | 1.21 | 1.4 | 27 | ||
| AM6010H24B(S) | 24.0 | 12.0-27.0 | 0.11 | 4200 | 1.85 | 3.2 | 36 |
| AM6010M24B(S) | 0.09 | 3600 | 1.59 | 2.5 | 31 | ||
| AM6010L24(S) | 0.07 | 3000 | 1.21 | 1.4 | 27 |
