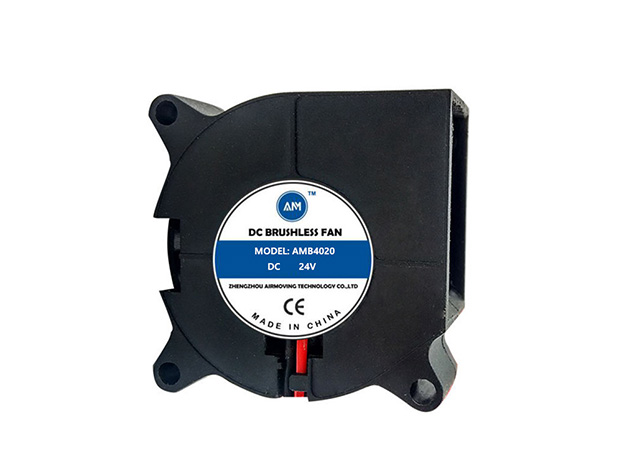

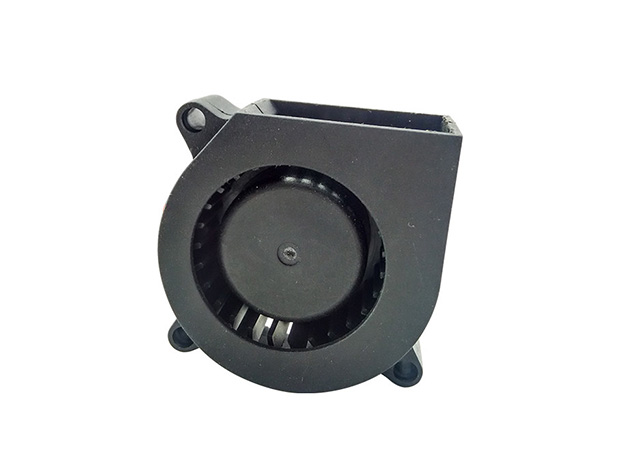

DC blower fan 4020

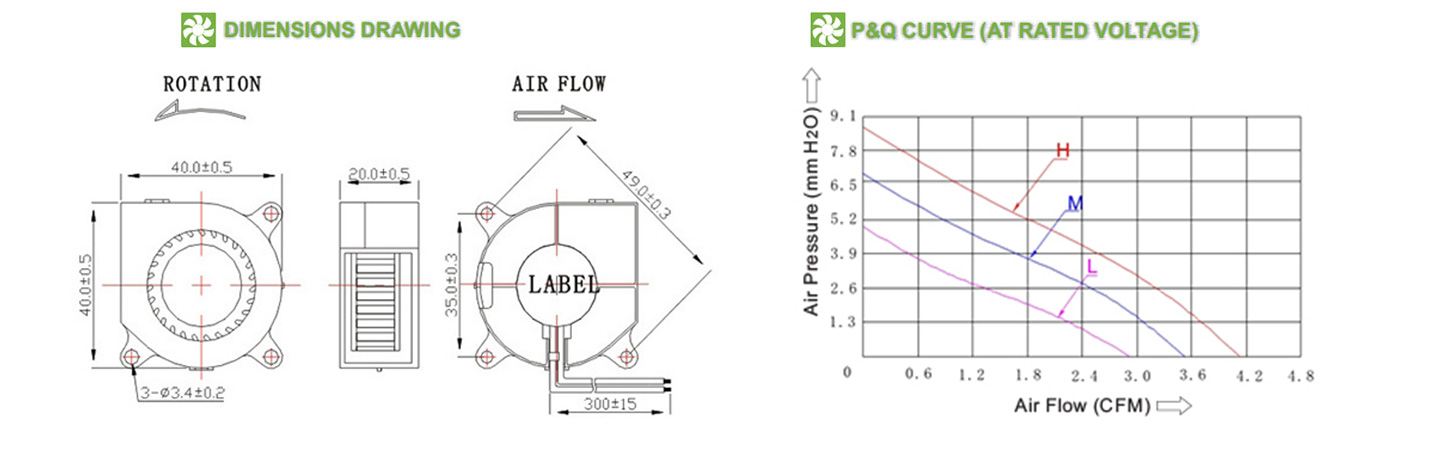

Size: 40*40*20mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 25g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise

Optional Function: 1.Lock Protection 2.Reverse polarity protection 3.Waterproof Level
Technical characteristics

Item code: DC blower fan 4020

Housing: PBT, UL94V-0

Impeller: PBT, UL94V-0

Lead Wire: UL 1007 AWG#26
                “+” Red, “-” Black

Available Option: “Sensor” Yellow, “PWM” Blue

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM mmH2O dBA
AMB4020H5 5.0 3.0-6.8 0.32 7000 4.80 8.90 34.8
AMB4020M5 0.23 5500 3.60 6.90 30.0
AMB4020L5 0.18 4000 2.72 4.80 25.0

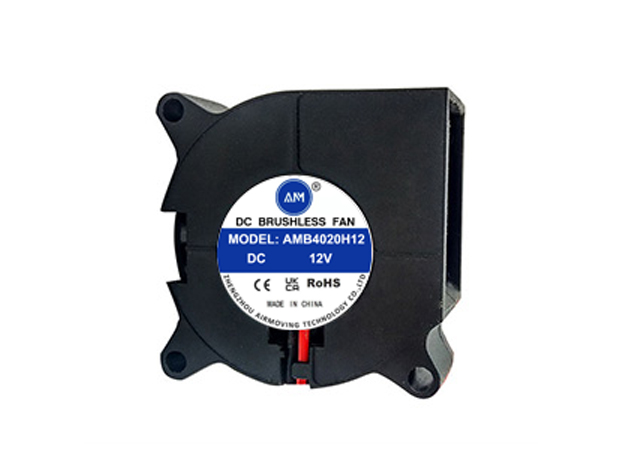

AMB4020H12 12.0 7.0-13.8 0.23 7000 4.80 8.90 34.8
AMB4020M12 0.14 5500 3.60 6.90 30.0
AMB4020L12 0.06 4000 2.72 4.80 25.0
AMB4020H24 24.0 12.0-27.6 0.14 7000 4.80 8.90 34.8
AMB4020M24 0.06 5500 3.60 6.90 30.0
AMB4020L24 0.03 4000 2.72 4.80 25.0
