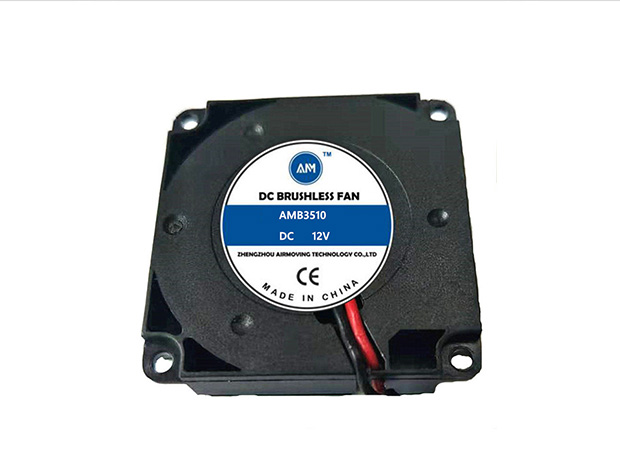

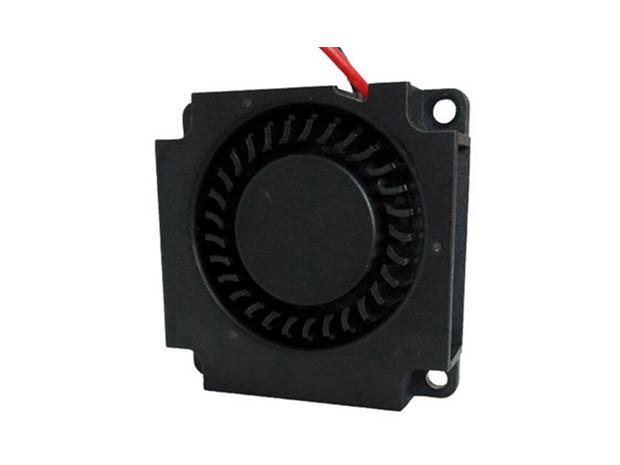

DC blower fan 3510

Size: 35*35*10mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 12g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise

Optional Function: 1.: Lock Protection 2.: Reverse polarity protection 3.: Waterproof Level
Technical characteristics

Item code: DC blower fan 3510

Housing: PBT, UL94V-0

Impeller: PBT, UL94V-0

Lead Wire: UL 1007 AWG#28
                                        “+” Red, “-” Black

Available Option: “Sensor” Yellow, “PWM” Blue

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type

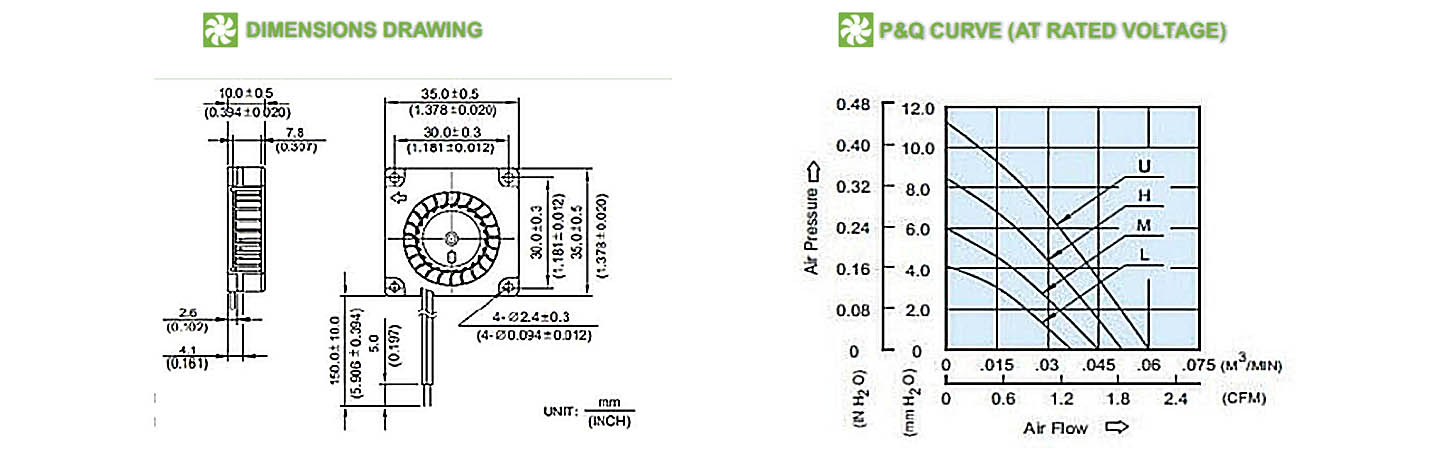

Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM mmH2O dBA
AMB3510M5 5.0 1.8-6.8 0.20 8500 2.12 11.25 32
AMB3510L5 0.09 6500 1.59 6.01 26
AMB3510M12 12.0 7.0-13.8 0.09 8500 2.12 11.25 32
AMB3510L12 0.06 6500 1.59 6.01 26

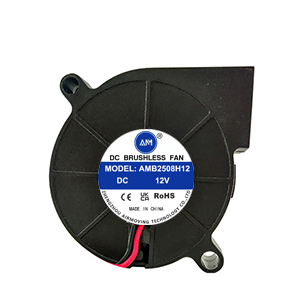

Related Products
