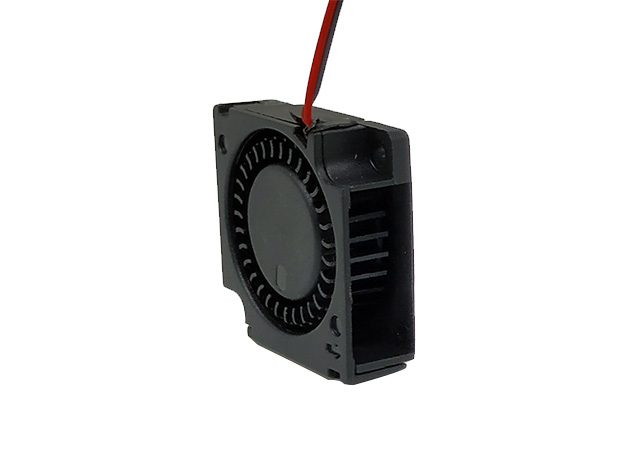

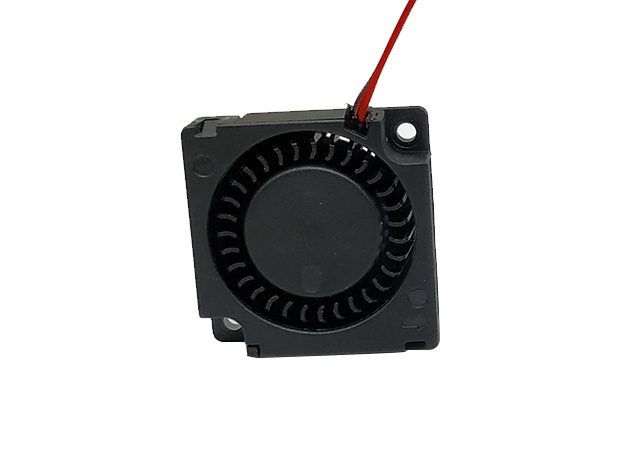

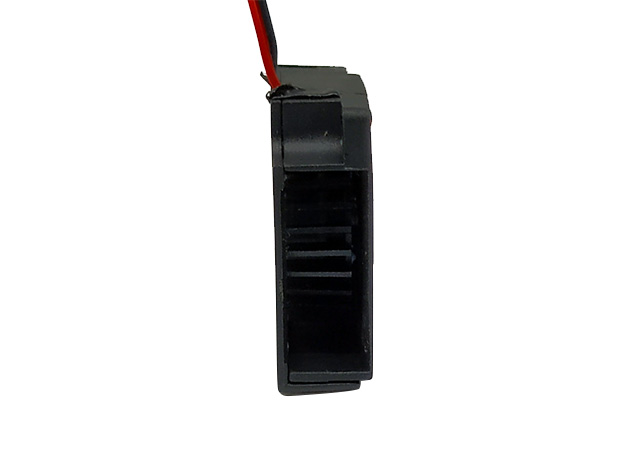

DC blower fan 3010

Size: 30*30*10mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 25g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise

Optional Function: 1.Lock Protection 2.Reverse polarity protection 3.Waterproof Level
Technical characteristics

Item code: DC blower fan 3010

Housing: PBT, UL94V-0

Impeller: PBT, UL94V-0

Lead Wire: UL 1007 AWG#28
                “+” Red, “-” Black

Available Option: “Sensor” Yellow, “PWM” Blue

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM mmH2O dBA
AMB3010H5 5.0 3.0-5.5 0.20 8500 1.39 5.86 33
AMB3010M5 0.14 7000 1.23 3.91 28
AMB3010L5 0.12 6000 1.07 2.86 25
AMB3010H12 12.0 7.0-13.8 0.12 11000 1.71 7.95 43
AMB3010M12 0.09 9500 1.55 6.93 39
AMB3010ML12 0.058 7000 1.23 3.91 28
AMB3010L12 0.05 6000 1.07 2.86 25
