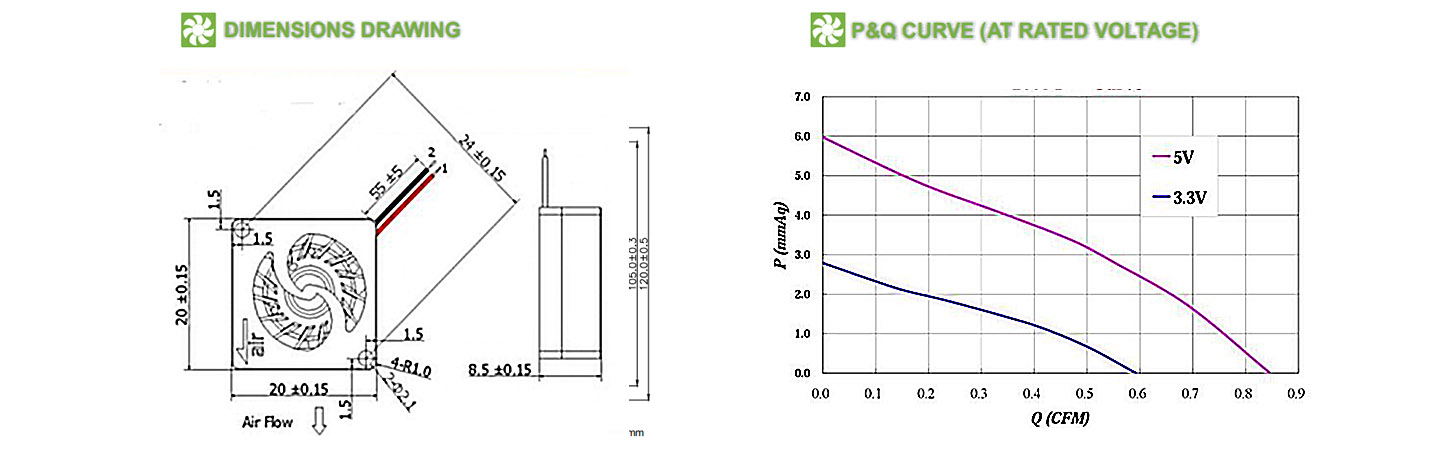

| Size: | 20*20*8mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 3g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

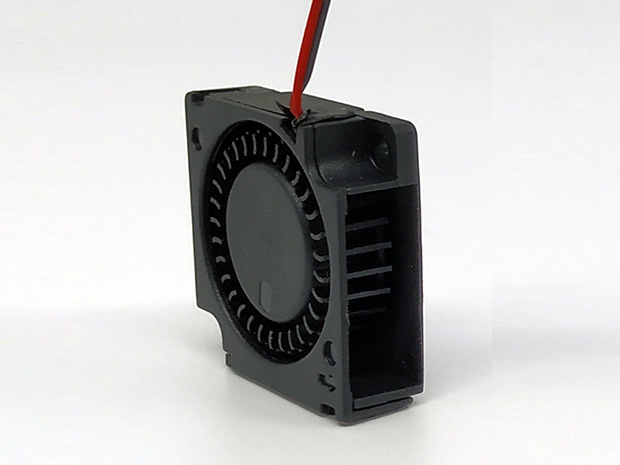

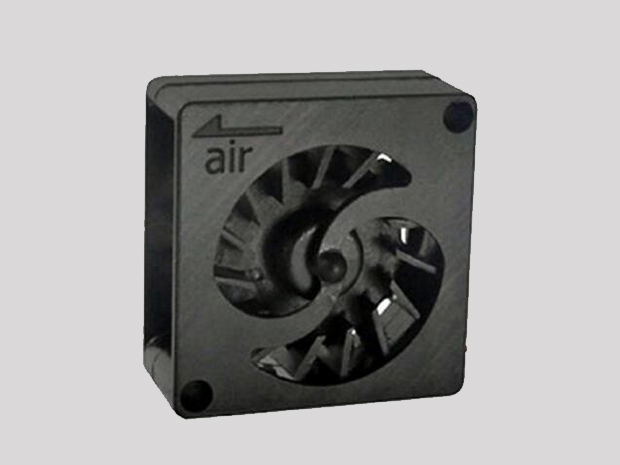

Item code: DC blower fan 2008
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#28
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AMB2008H3 | 3.3 | 2.8-5.5 | 0.09 | 9500 | 0.59 | 2.79 | 15 |
| AMB2008H5 | 5.0 | 2.8-5.5 | 0.13 | 14000 | 0.85 | 5.97 | 20 |
