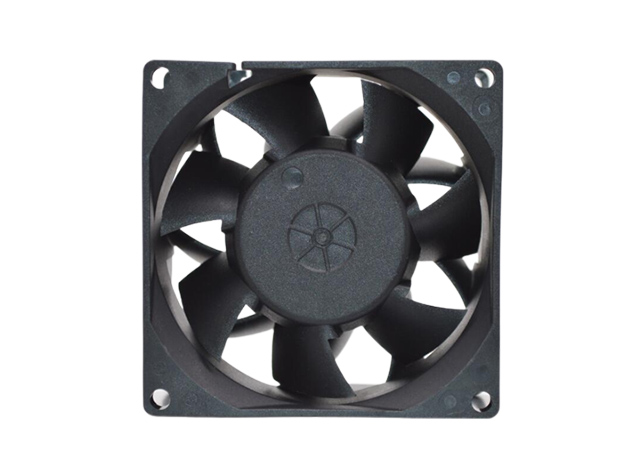

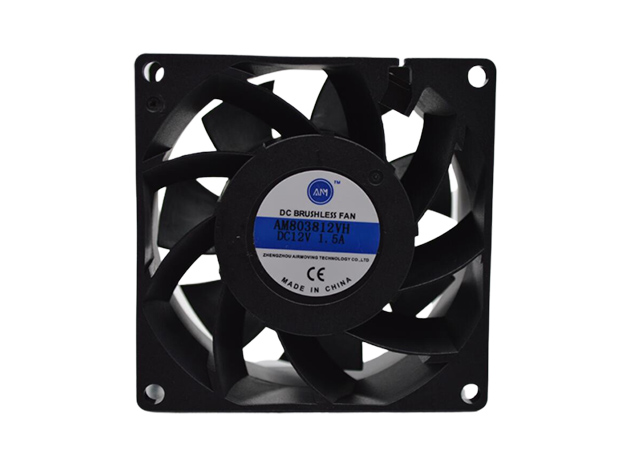

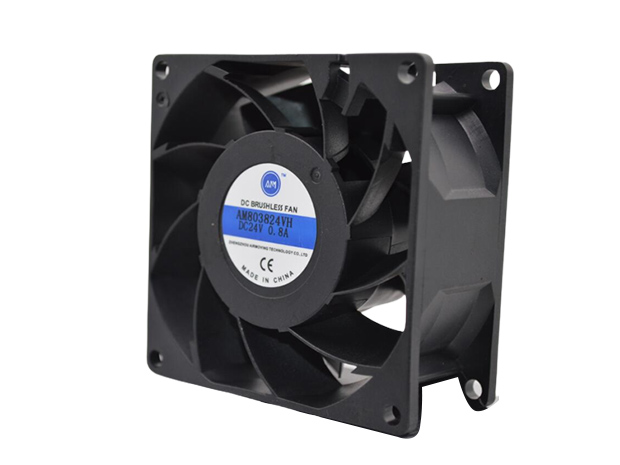

DC 8038

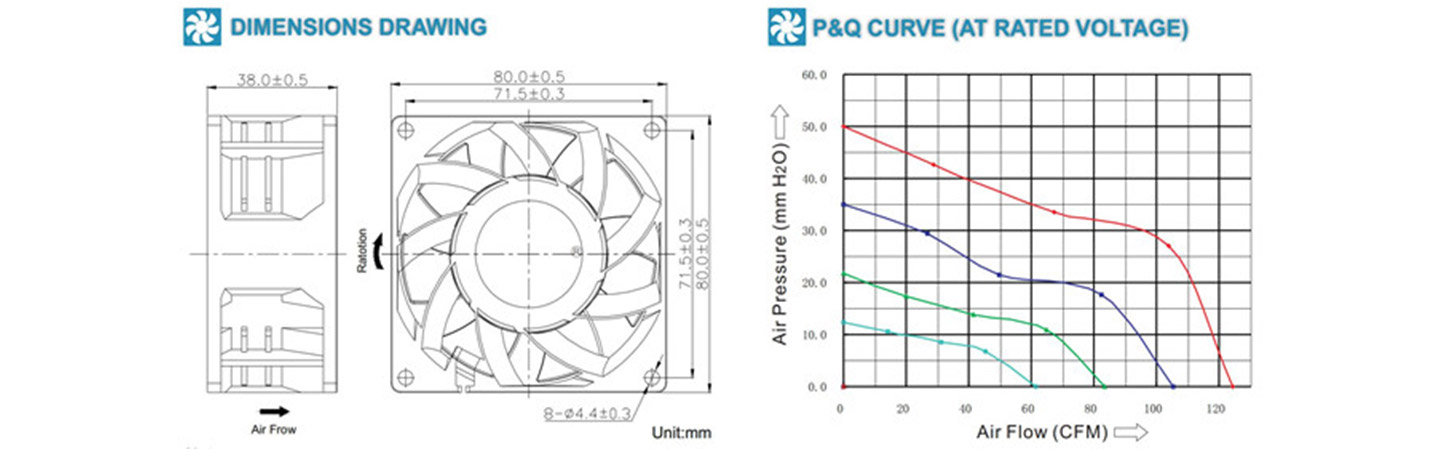

Size: 80*80*38mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 154g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Auto restart
3.Waterproof Level
Technical characteristics

Item code: DC8038

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Optional wire: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type


Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM MmH2O dBA
AM8038H12 12.0 7.0-13.8 1.60 7000 100.0 35.0 63
AM8038M12 0.85 6000 83.5 21.8 57

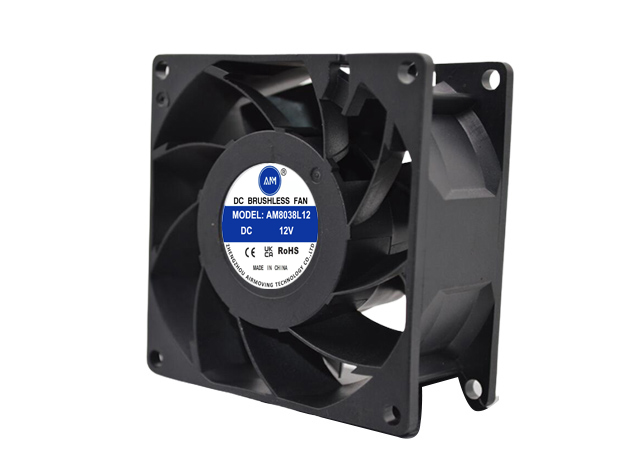

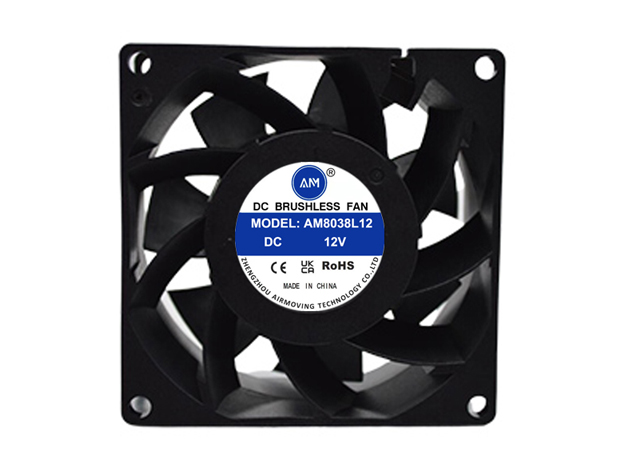

AM8038L12 0.45 4500 61.5 12.4 49
AM8038H24 24.0 12.0-27.6 0.80 7000 100.0 35.0 63
AM8038M24 0.45 6000 83.5 21.8 57
AM8038L24 0.25 4500 61.5 12.4 49
AM8038H48 48.0 24.0-55.2 0.45 7000 100.0 35.0 63
AM8038M48 0.28 6000 83.5 21.8 57
AM8038L48 0.18 4500 61.5 12.4 49
