DC 8025 Bi-Voltage

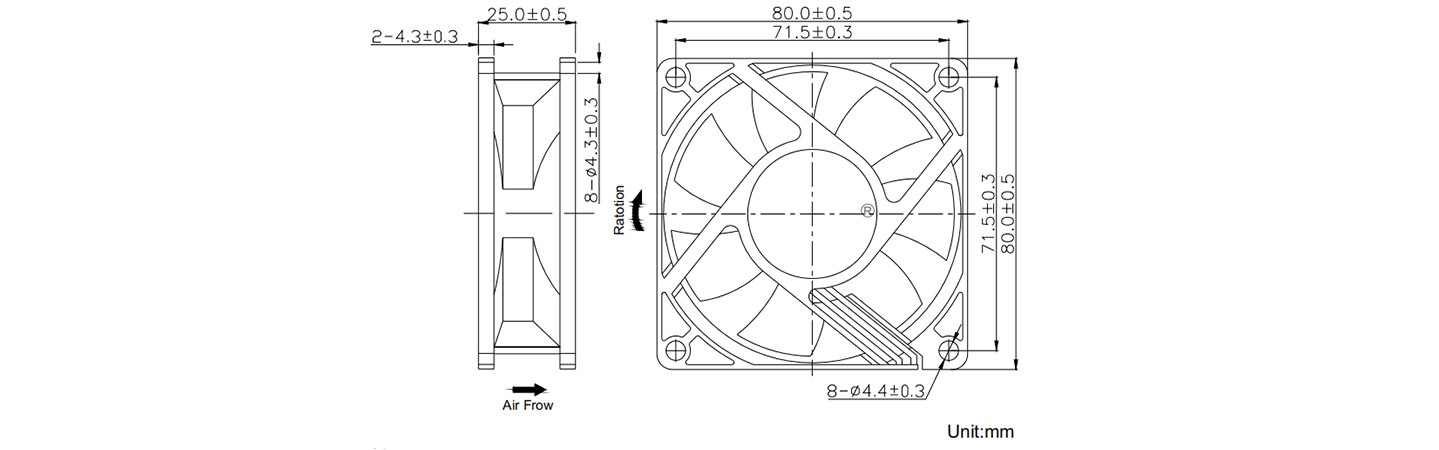

Size: 80*80*25mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 88g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Auto restart
3.Waterproof Level
Technical characteristics

Item code: DC5020

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Optional wire: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type


Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC A RPM CFM MmH2O dBA
AM8025BM1 12-24V 12V 0.14 2500 35.0 2.5 28
24V 0.20 3500 48.2 4.9 38
