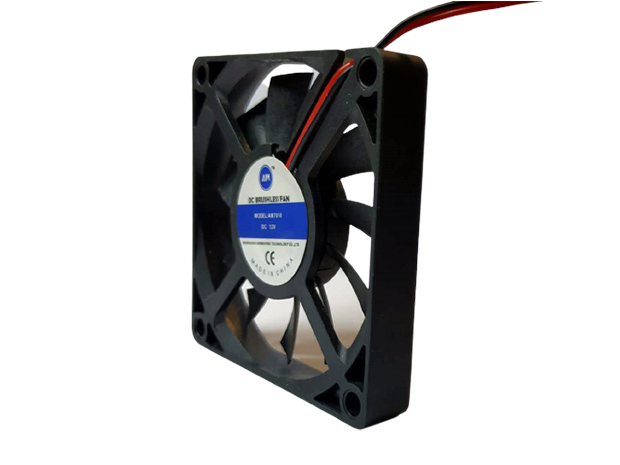

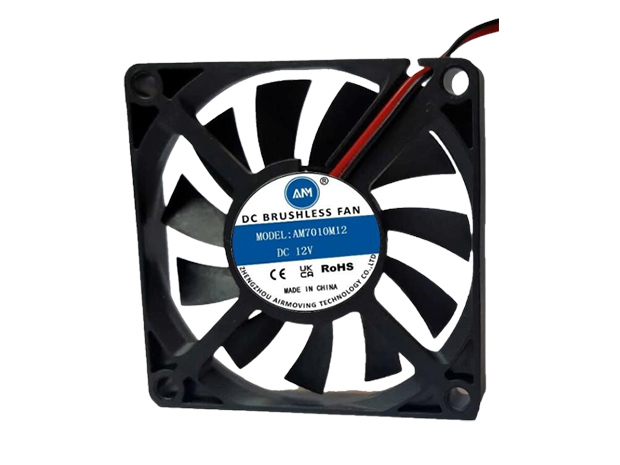

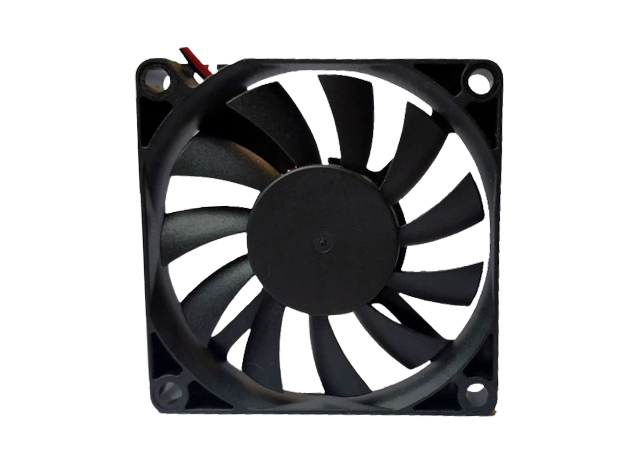

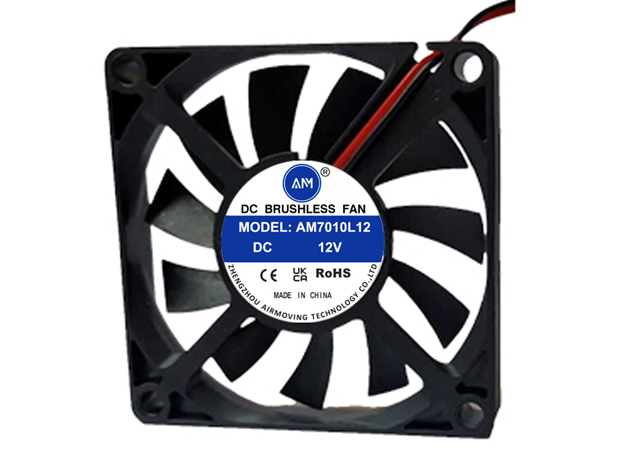

DC 7010

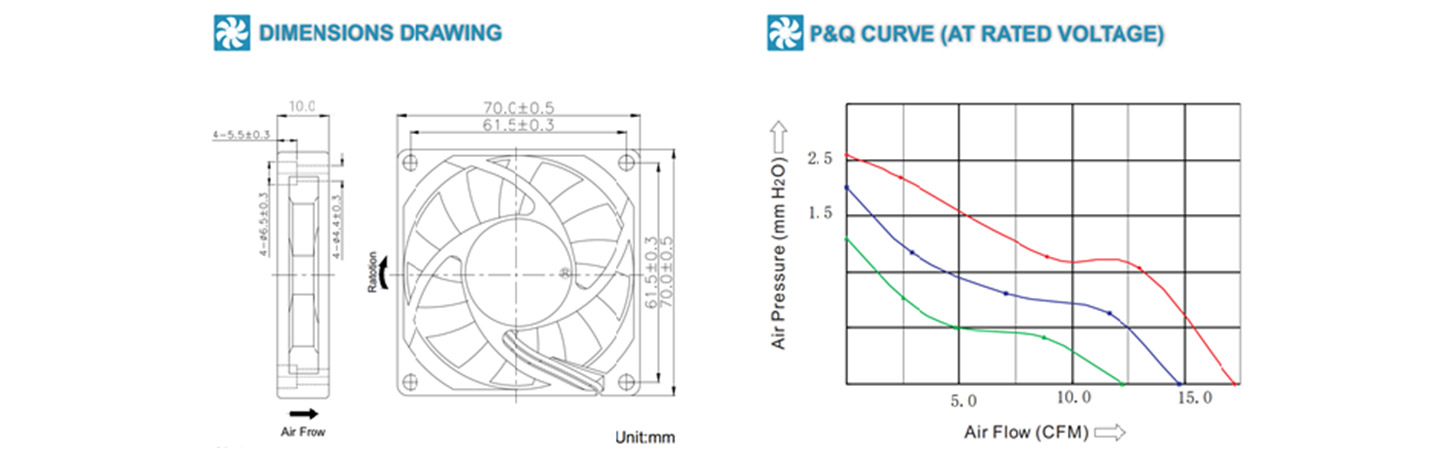

Size: 70*70*10mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 30g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Auto restart
3.Waterproof Level
Technical characteristics

Item code: DC7010

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Optional wire: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
                                        -20℃ to +80℃,35%-85%RH for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM MmH2O dBA
AM7010H5 5.0 3.5-6.0 0.16 3500 19.13 2.65 32.6
AM7010M5 0.12 3000 16.39 2.48 27.9
AM7010L5 0.09 2500 13.31 1.28 23.9
AM7010H12 12.0 6.0-13.8 0.35 3500 19.13 2.65 32.6
AM7010M12 0.27 3000 16.39 2.48 27.9
AM7010L12 0.13 2500 13.31 1.28 23.9
