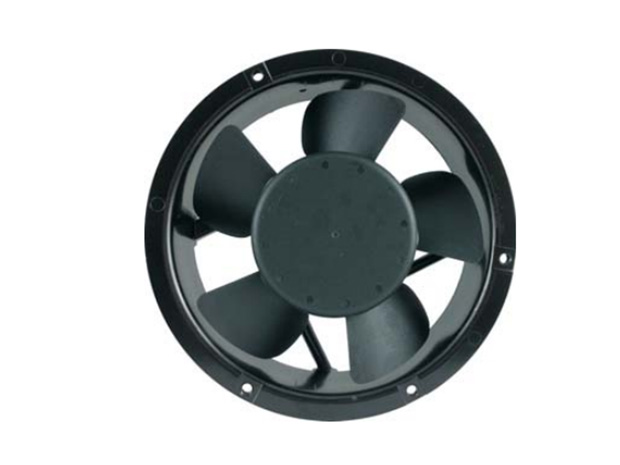

DC 17251 ROUND FAN

Size: 172*150*50mm
Motor: DC brushless fan motor
Bearing: Ball
Weight: 750g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Polarity Protection.
3.Waterproof Level
Technical characteristics

Item code: DC 17251 ROUND FAN

Housing: PBT, UL94V-0

Impeller: PBT, UL94V-0

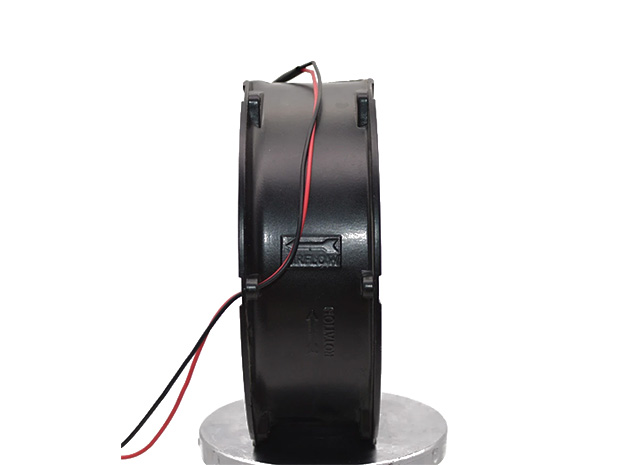

Lead Wire: UL 1007 AWG#22
                   “+” Red,“-” Black

Available Option: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        --20℃ to +80℃ for Ball Type

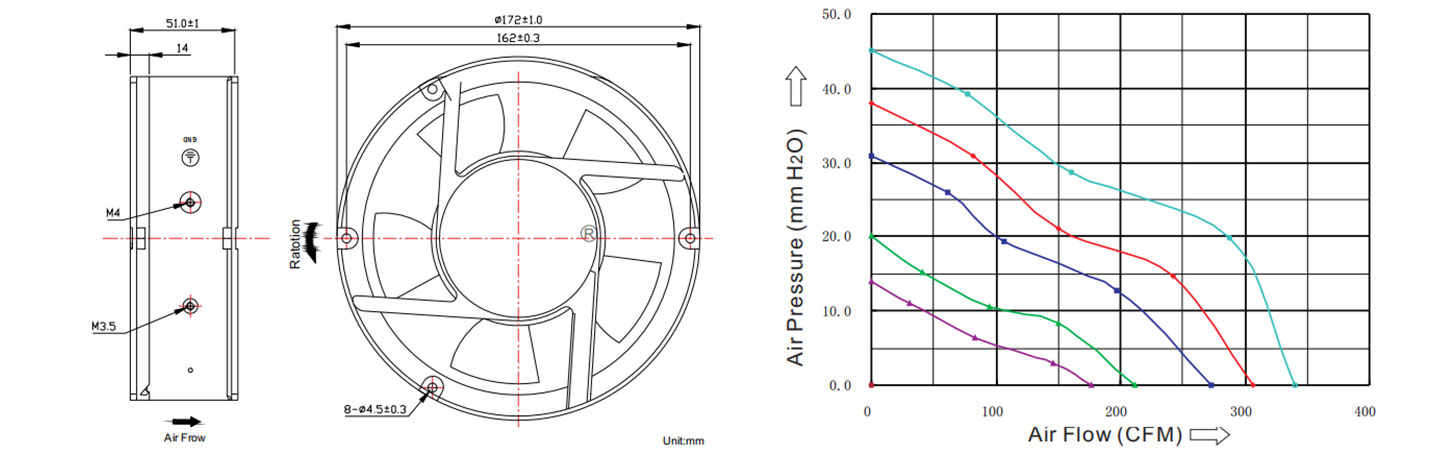

Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM MmH2O dBA
AM17251U12 12 6.0-13.8 3 4500 306.8 38.1 64
AM17251H12 2.5 4000 272.6 30.8 61
AM17251M12 1.5 3000 211.5 20 51
AM17251L12 1 2500 176.2 13.9 44
AM17251U24 24 12.0-27.6 2.4 4500 306.8 38.1 64
AM17251H24 2 4000 272.6 30.8 61
AM17251M24 1.5 3000 211.5 20 51
AM17251L24 0.6 2500 176.2 13.9 44
AM17251U48 48 24.0-55.2 1.5 4500 306.8 38.1 64
AM17251H48 1 4000 272.6 30.8 61
AM17251M48 0.75 3000 211.5 20 51
AM17251L48 0.4 2500 176.2 13.9 44
