DC 14038

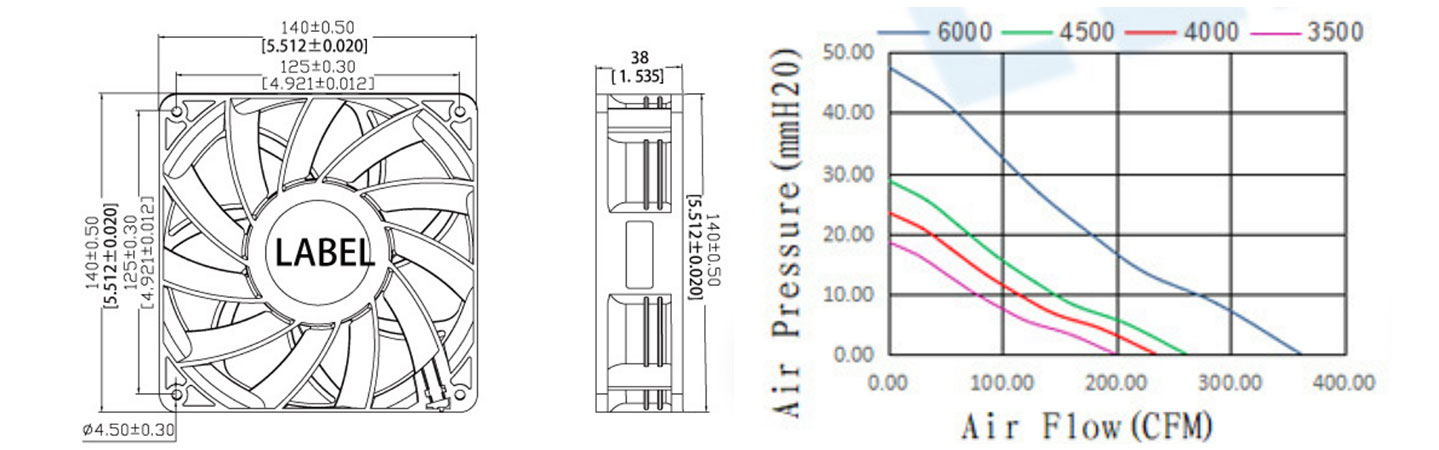

Size: 140*140*38mm
Motor: DC brushless fan motor
Bearing: Ball
Weight: 400g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Polarity Protection.
3.Waterproof Level
Technical characteristics

Item code: DC 14038

Housing: PBT, UL94V-0

Impeller: PBT, UL94V-0

Lead Wire: UL 1007 AWG#22
                   “+” Red,“-” Black

Available Option: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        --20℃ to +80℃ for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM MmH2O dBA
AM14038U12 12 6.0-13.8 3.7 5000 286.3 34.9 69
AM14038H12 3.1 4500 261.7 28.8 66
AM14038M12 2.2 4000 235.2 23.5 63
AM14038L12 1.6 3500 199.8 18.6 60
AM14038U24 24 12.0-27.6 1.85 5000 286.3 34.9 69
AM14038H24 1.5 4500 261.7 28.8 66
AM14038M24 1.2 4000 235.2 23.5 63
AM14038L24 0.8 3500 199.8 18.6 60
AM14038U48 48 24.0-55.2 1.1 5000 286.3 34.9 69
AM14038H48 0.85 4500 261.7 28.8 66
AM14038M48 0.7 4000 235.2 23.5 63
AM14038L48 0.5 3500 199.8 18.6 60
