DC 14025

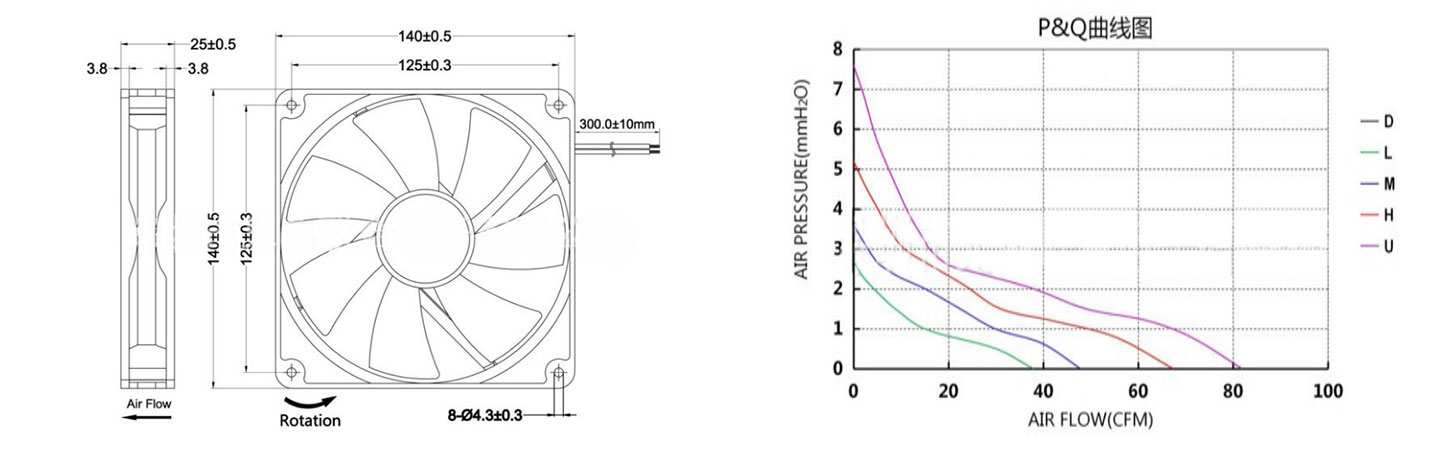

Size: 140*140*25mm
Motor: DC brushless fan motor
Bearing: Ball
Weight: 195g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Polarity Protection.
3.Waterproof Level
Technical characteristics

Item code: DC 14025

Housing: PBT, UL94V-0

Impeller: PBT, UL94V-0

Lead Wire: UL 1007 AWG#22
                   “+” Red,“-” Black

Available Option: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        --20℃ to +80℃ for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM MmH2O dBA
AM14025H12 12 6.0-13.8 0.4 2000 90.8 3.1 38
AM14025M12 0.3 1700 83.4 2.5 35
AM14025L12 0.23 1500 67.8 2.2 31
AM14025H24 24 12.0-27.6 0.23 2000 90.8 3.1 38
AM14025M24 0.2 1700 83.4 2.5 35
AM14025L24 0.18 1500 67.8 2.2 31
AM14025H48 48 24.0-55.2 0.18 2000 90.8 3.1 38
AM14025M48 0.1 1700 83.4 2.5 35
AM14025L48 0.09 1500 67.8 2.2 31
