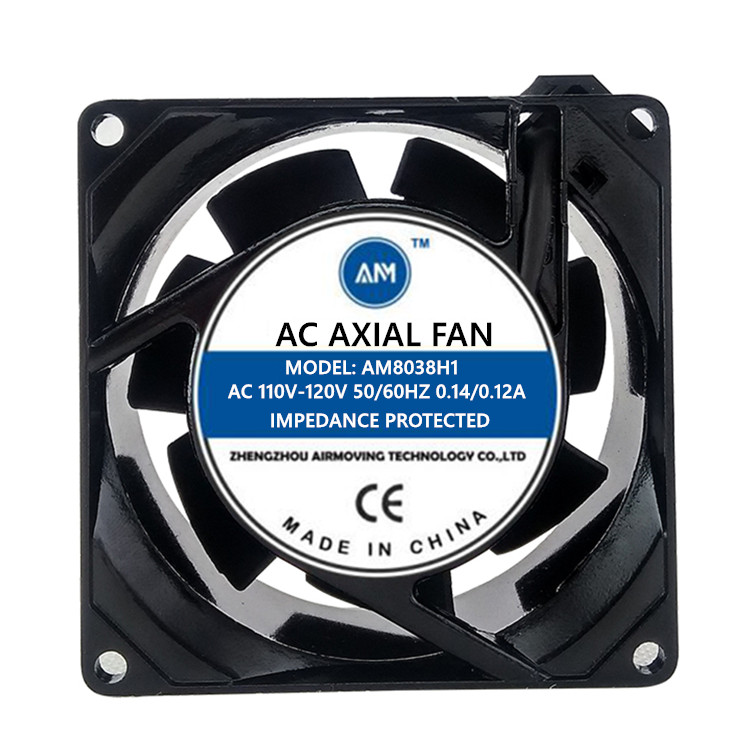

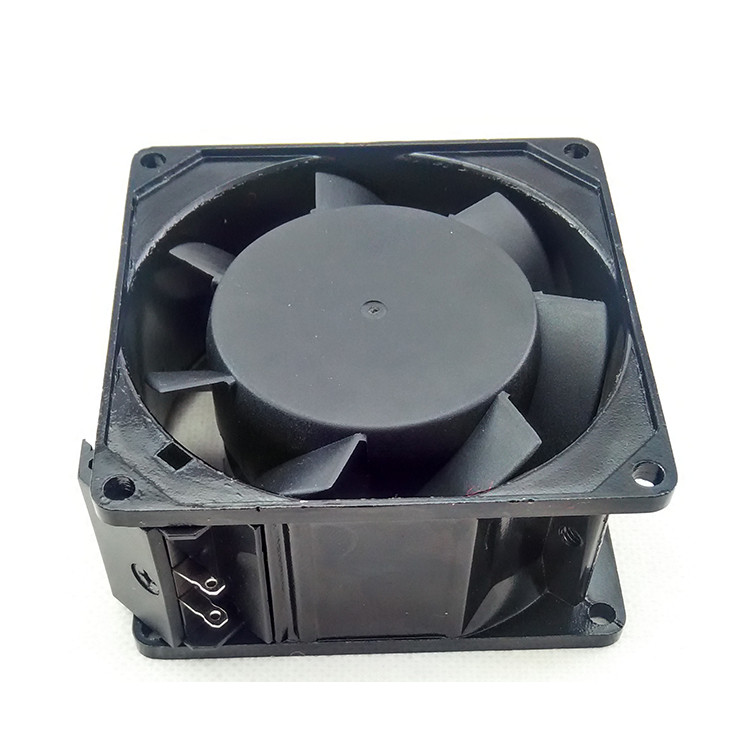

AC 8038

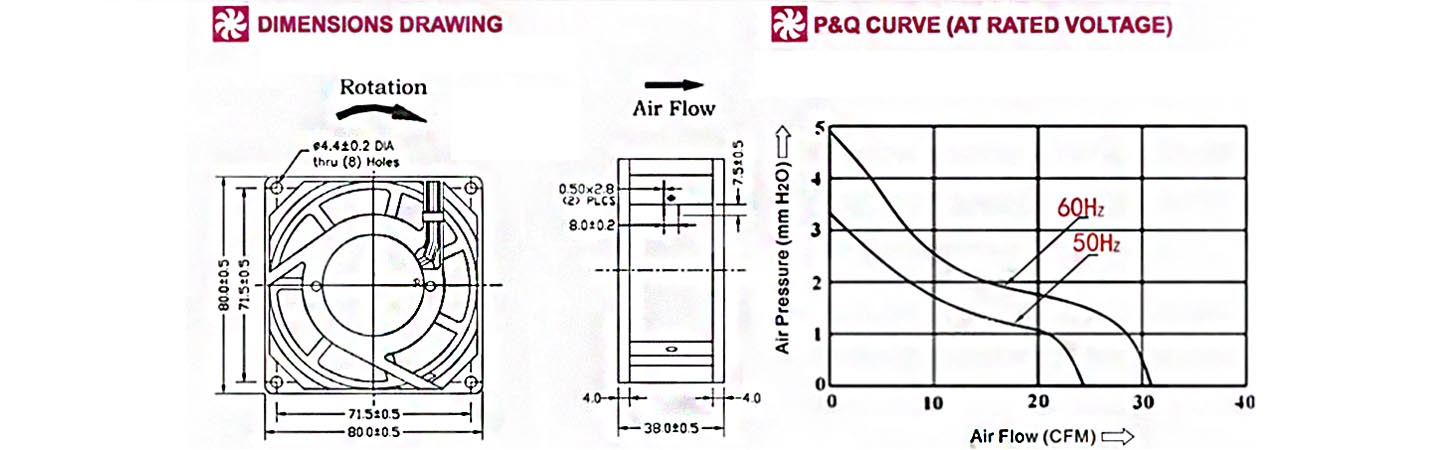

Size: 80*80*38mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 270g
Safety: Impedance Protected
Technical characteristics

Item code: AC 8038

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24,

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz Amp Watt RPM CFM MmH2O dBA
AM8038MS1 110-125 50/60 0.14/0.12 11/8 2300/2700 22/26 3.0/4.5 30/35
AM8038MB1 110-125 50/60 0.14/0.12 11/8 2400/2800 25/28 3.3/4.83 32/36
AM8038MS2 200-240 50/60 0.07/0.06 11/8 2300/2700 22/26 3.0/4.5 30/35
AM8038MB2 200-240 50/60 0.07/0.06 11/8 2400/2800 25/28 3.3/4.83 32/36
