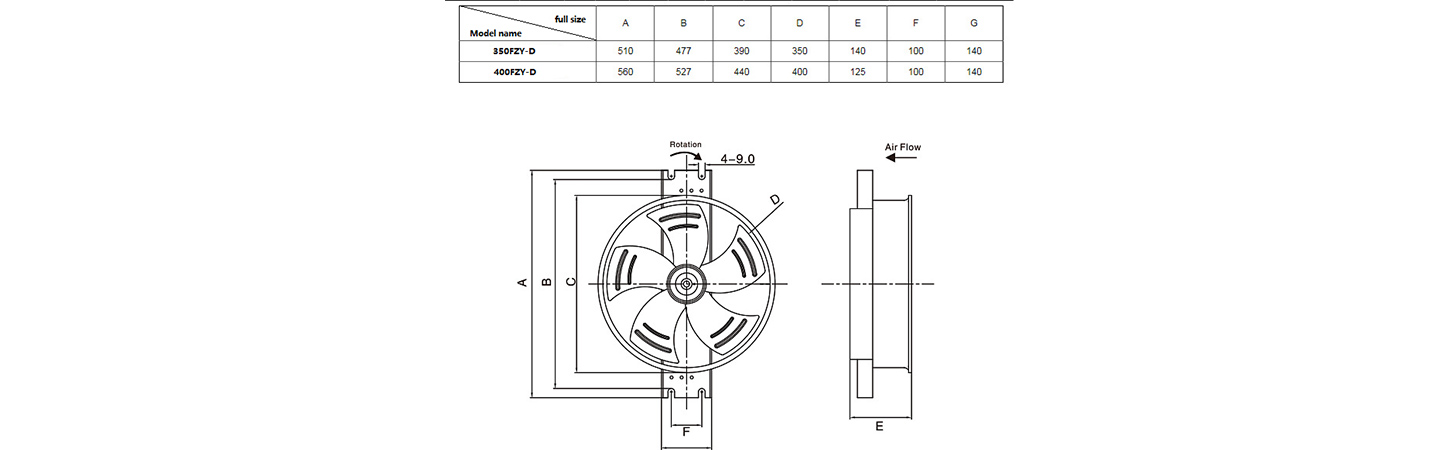

| Size： | Φ390*125mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |
| Weight: | 6000g |
Item code: AC 350FZY2-D
Housing: Iron, Painted Black
Impeller: Iron, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Frequency | Rated Current | Imput power W | Rated Speed | Air Flow | Phase No. | Capacitance | Noise Level |
| V AC | Hz | Amp | RPM | M3/hr | dBA | ||||
| AM350FZY2-D | 220V | 50/60 | 0.7 | 150 | 1350/1500 | 2880/3100 | 1 | 5μF/450V | 67/69 |
| AM350FZY3-D | 380V | 50/60 | 0.35 | 150 | 1350/1500 | 2880/3100 | 3 | / | 67/69 |
| AM350FZY4-D | 380V | 50/60 | 0.4 | 150 | 1350/1500 | 2880/3100 | 1 | 2.2μF/500V | 67/69 |
