AC 28080

Size: 280*280*80mm
Motor wires: 100% pure copper motor wires
Bearing: Ball
Weight: 2700g
Safety: Impedance Protected
Technical characteristics

Item code: AC 28080

Housing: Aluminum Alloy, Painted Black

Impeller: mental blades

Lead Wire: UL 1007 AWG#22

Termination: Lead wire, no connector

Operating Temperature: -20℃ to +80℃ for Ball Type

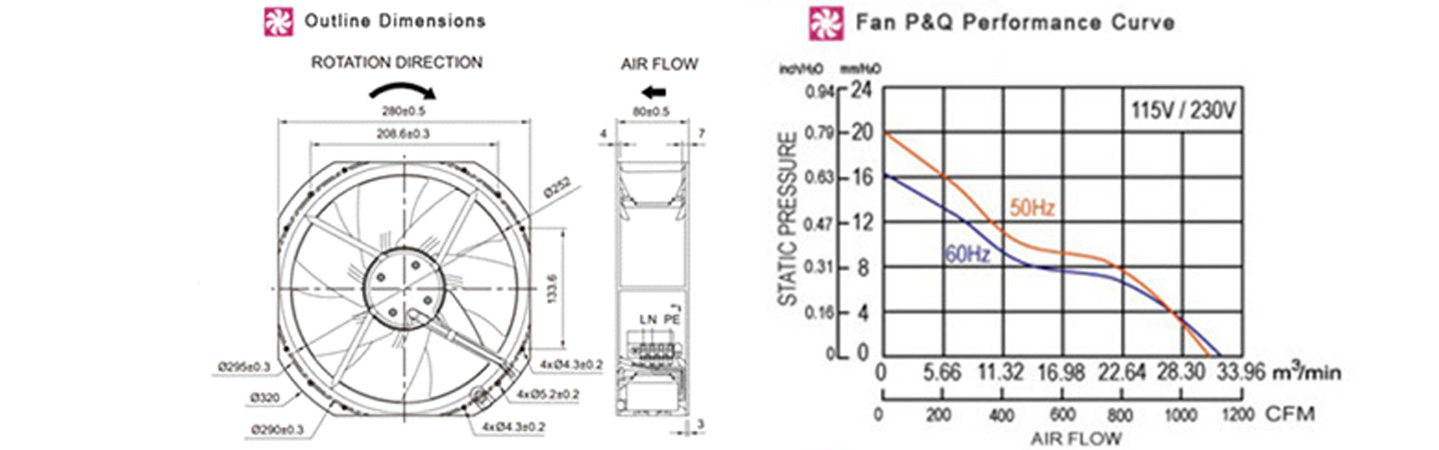

Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Phase Noise Level Capacitance
V AC Hz Amp Watt RPM M3/Min Number dBA
AM28080H1 Ball 110-125 50/60 1.2 120 2400/2650 33/38 1 65/70 4.0/250
AM28080H2 Ball 200-240 50/60 0.55 120 2400/2650 33/38 1 65/70 2.2/500
AM28080H3 Ball 380-420 50/60 0.36 120 2400/2850 33/38 1 65/70 2.2/500
AM28080C3 Ball 380-420 50/60 0.32 80 2400/2850 33/38 3 65/70 /
