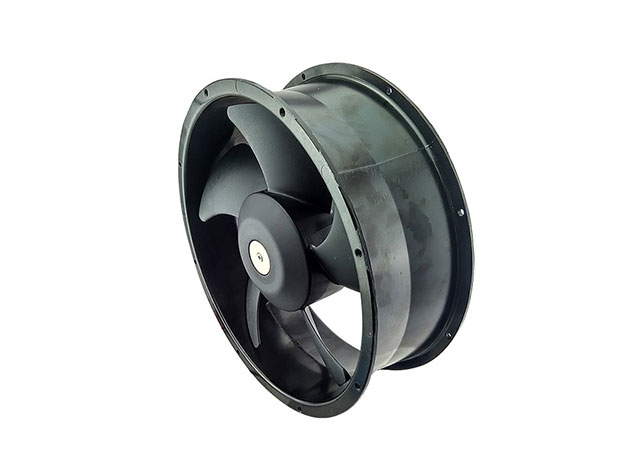

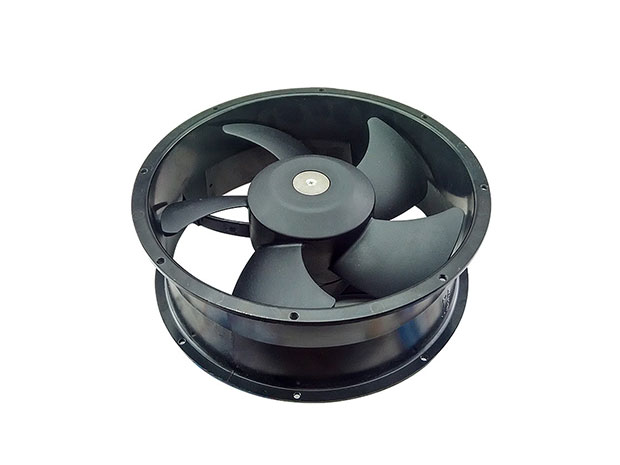

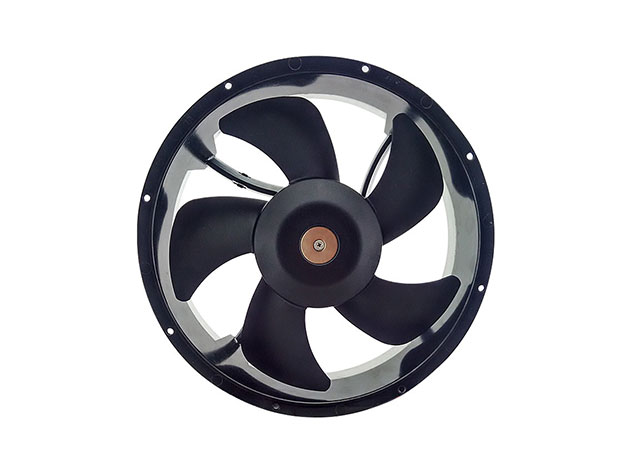

AC 25489, round

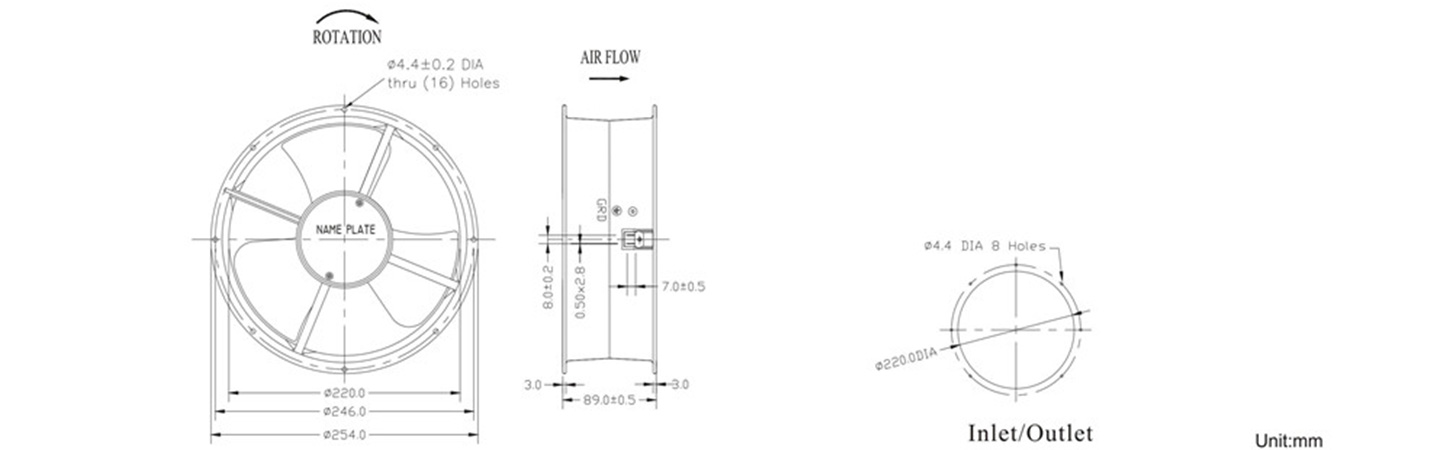

Size: 254*89mm
Motor wires: 100% pure copper motor wires
Bearing: Ball
Weight: 2150g
Safety: Impedance Protected
Technical characteristics

Item code: AC 25489, round

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#22

Operating Temperature: -20℃ to +80℃,for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
V AC Hz Amp Watt RPM CFM mmH2O dBA
AM25489MB1 Ball 110-125 50/60 0.65/0.85 80/100 2500/2700 680/820 21/17 80/88
AM25489MB2 Ball 200-240 50/60 0.40/0.55 80/100 2500/2700 680/820 21/17 80/88
AM25489MB3 Ball 380-420 50/60 0.30/0.35 80/100 2500/2700 680/820 21/17 80/88
