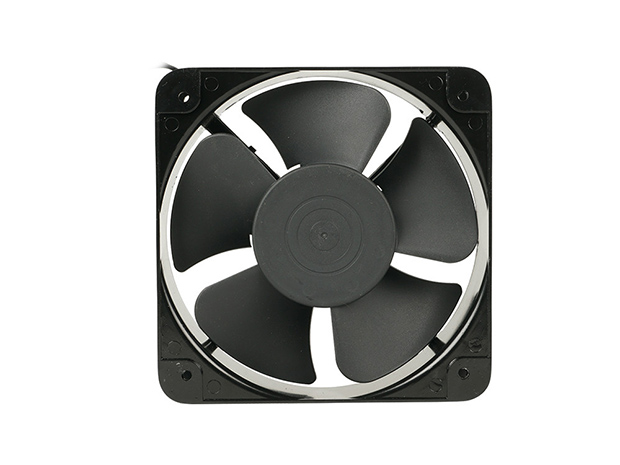

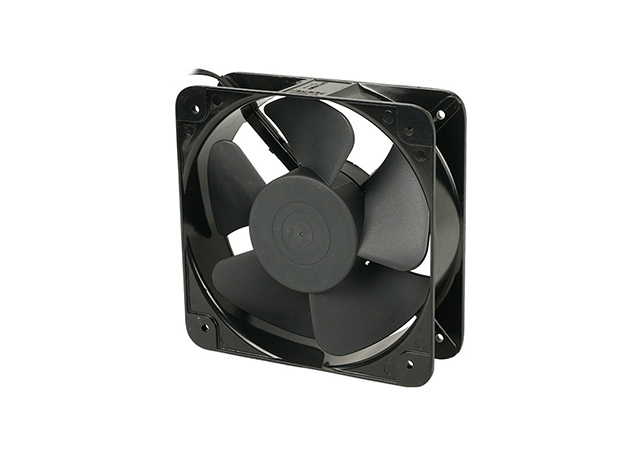

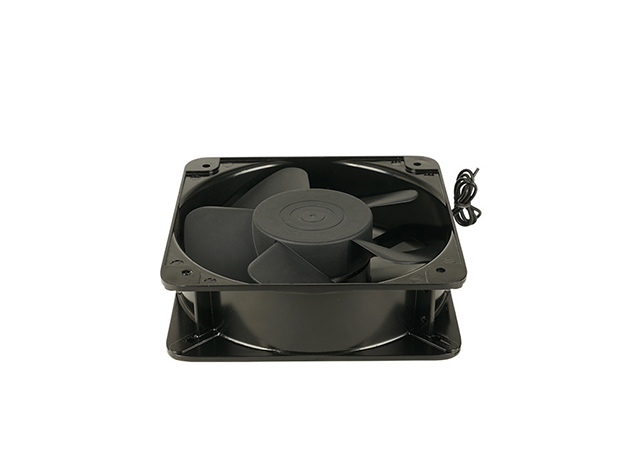

AC 20060

Size: 200*200*60mm
Motor wires: 100% pure copper motor wires
Bearing: Ball
Weight: 1625g
Safety: Impedance Protected
Technical characteristics

Item code: AC 20060

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#22

Termination: Lead wire, no connector

Operating Temperature: -20℃ to +80℃ for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
V AC Hz Amp Watt RPM CFM MmH2O dBA
AM20060MB1 Ball 110-125 50/60 0.76/0.85 61/65 2200/2600 360/388 24/25.4 50/56
AM20060MB2 Ball 200-240 50/60 0.28/0.32 49/55 2200/2600 360/388 24/25.4 50/56
AM20060MB3 Ball 380-420 50/60 0.20/0.23 54/62 2200/2600 360/388 24/25.4 50/56
