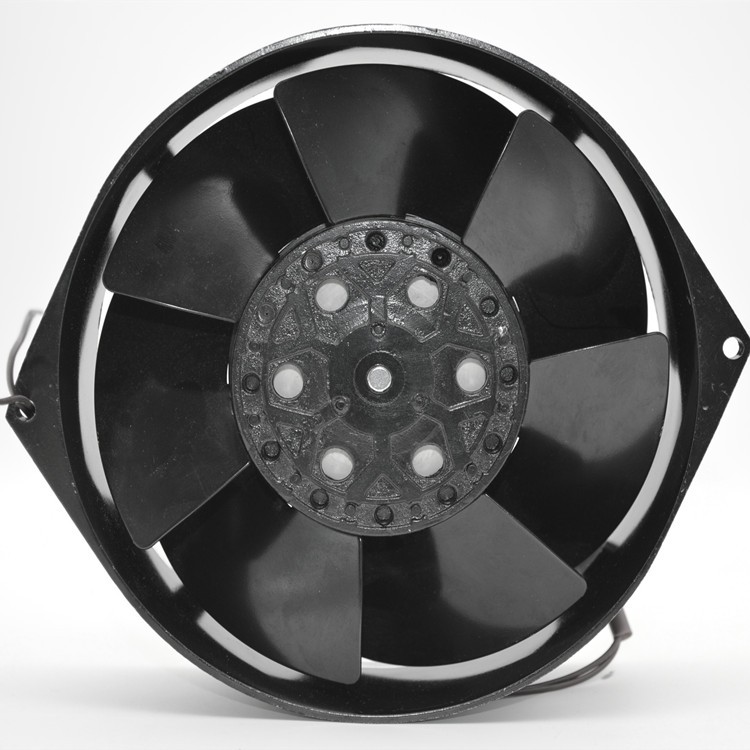

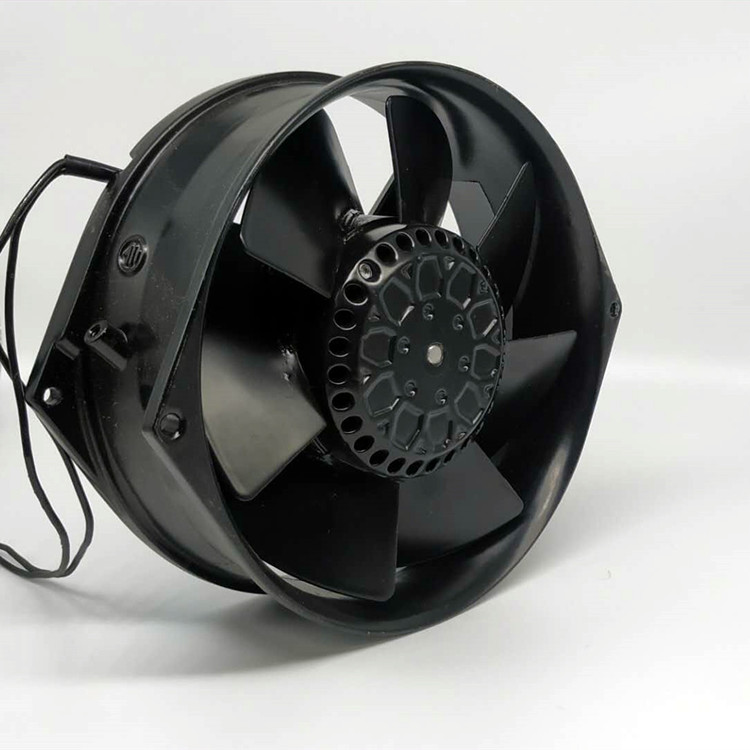

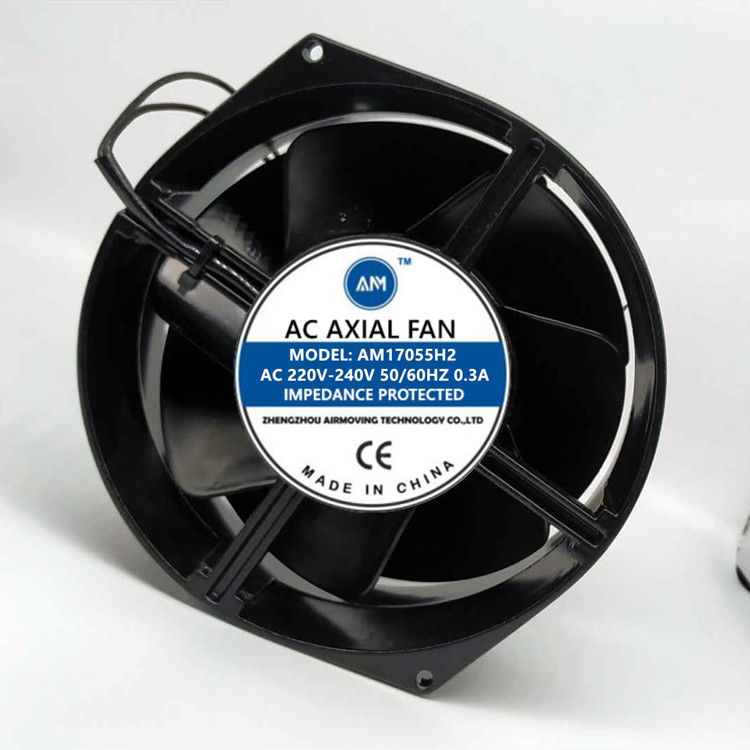

AC 17055, fish eye

Size: 172*150*55mm
Motor wires: 100% pure copper motor wires
Bearing: Ball
Weight: 1000g
Safety: Impedance Protected
Technical characteristics

Item code: AC 17055, fish eye

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0 or mental blades

Lead Wire: UL 1007 AWG#22,

Termination: Lead wire, no connector

Operating Temperature: -20℃ to +80℃ for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
V AC Hz Amp Watt RPM CFM MmH2O dBA
AM17250MB1 Ball 110-125 50/60 0.54 36 2800 195 17 52
AM17250MB2 Ball 200-240 50/60 0.30 36 2800 195 17 52
AM17250MB3 Ball 380-420 50/60 0.18 36 2800 195 17 52
