AC 12038

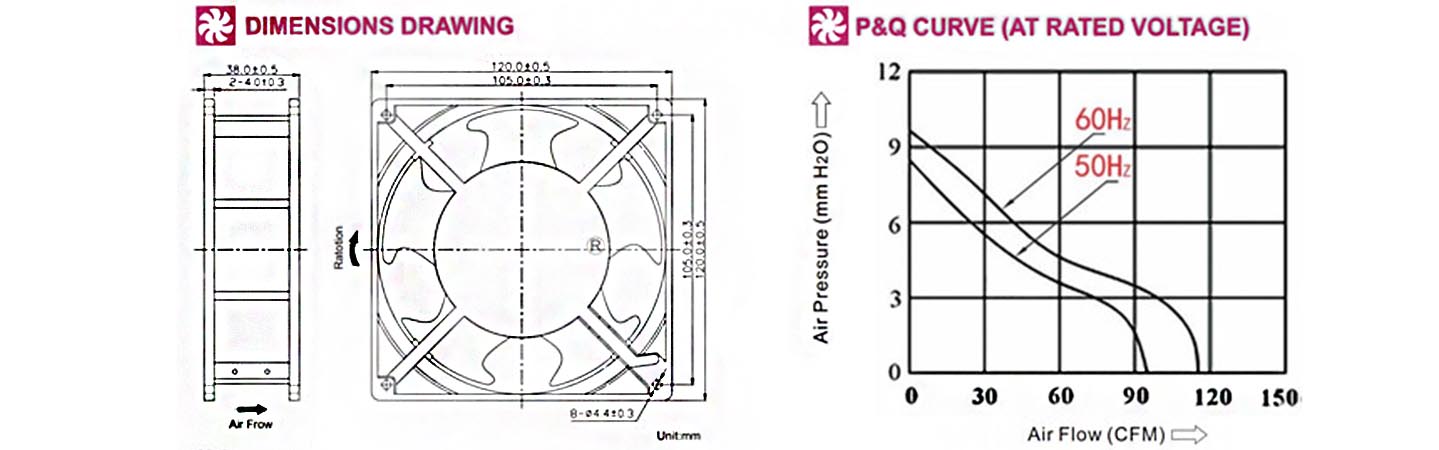

Size: 120*120*38mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 450g
Safety: Impedance Protected
Technical characteristics

Item code: AC 12038

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0 or mental blades

Lead Wire: UL 1007 AWG#24,

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz Amp Watt RPM CFM MmH2O dBA
AM12038MS1 110-125 50/60 0.15 15/14 2300/2500 72/83 5.1/6.8 39/42
AM12038MB1 110-125 50/60 0.26/0.24 20/19 2400/2600 95/106 8.4/9.7 44/49
AM12038MS2 200-240 50/60 0.16 15/14 2300/2500 72/83 5.1/6.8 39/42
AM12038MB2 200-240 50/60 0.14/0.12 20/19 2400/2600 95/106 8.4/9.7 44/49
AM12038MS3 380 50/60 0.08/0.07 20/19 2550/2900 95/106 8.4/9.7 44/49
AM12038MB3 380 50/60 0.08/0.07 20/19 2550/2900 95/106 8.4/9.7 44/49
