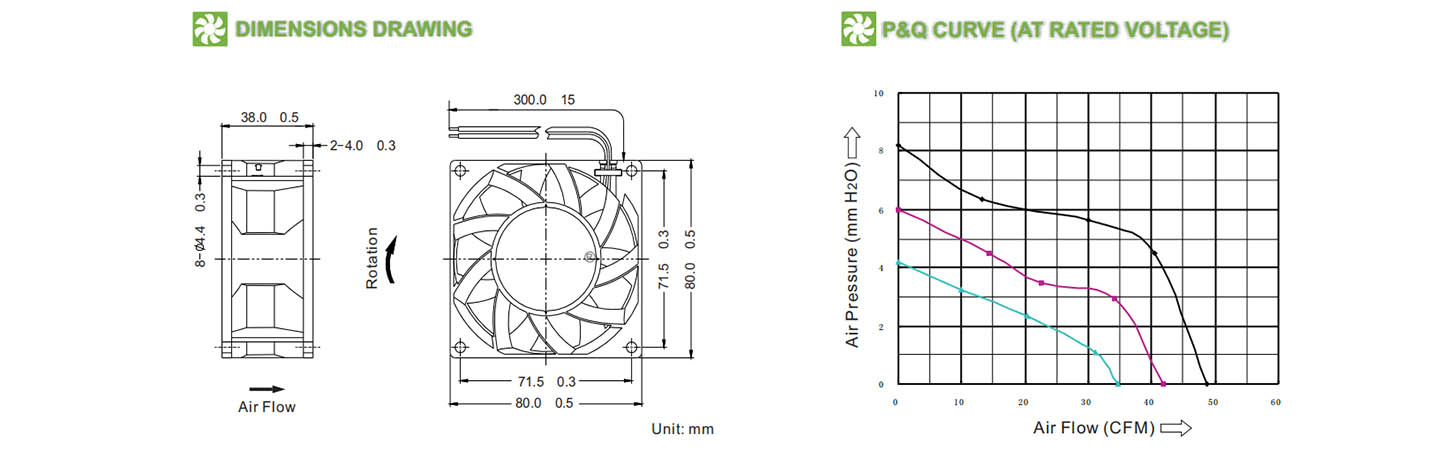

| Size: | 80*80*38mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball or Sleeve |
| Weight: | 140g |
| Safety: | Impedance Protected |
Item code: EC 8038
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
Termination: Lead wire, no connector
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Bearing System | Rated Voltage | Freq. | Operation Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level | |
| Ball | Sleeve | V AC | Hz | V AC | Amp | Watt | RPM | CFM | mmH2O | dBA | |

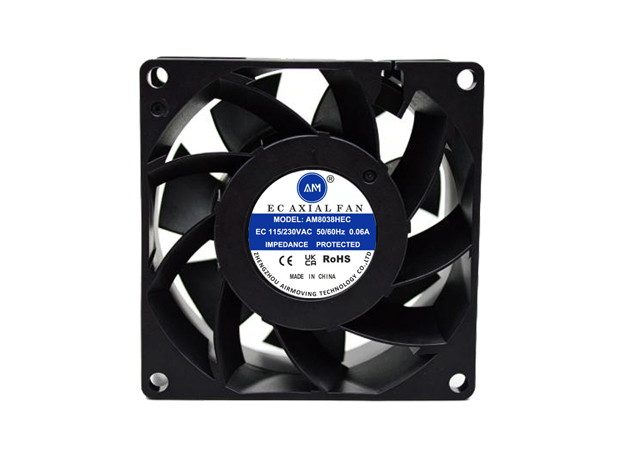

| AM8038HEC | √ | √ | 115/230 | 50/60 | 98-264 | 0.06 | 6 | 3500 | 48.7 | 8.2 | 42 |
| AM8038MEC | √ | √ | 0.04 | 4 | 3000 | 41.7 | 6.0 | 37 | |||
| AM8038LEC | √ | √ | 0.03 | 3 | 2500 | 34.8 | 4.2 | 32 | |||
